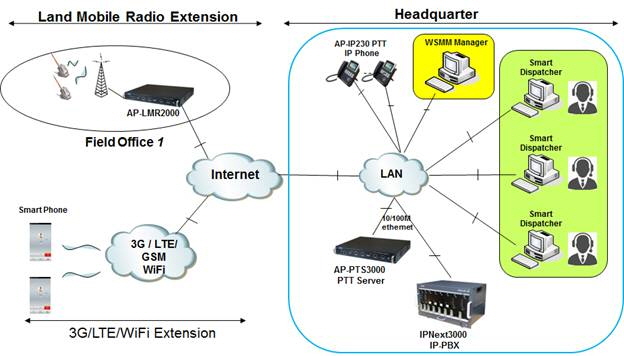

AddPac AP-SRD100 Smart RoIP (Radio over IP) Dispatcher is a MS window based software for PTT(Push to Talk) group call connection and management in medium, large scale RoIP network that consist of IP-PBX, PTT server, LMR (Land-to-Mobile) gateway, Analog PTT gateway, PTT IP phone, PTT softphone, etc. This software provides PTT group call service optimally using easy GUI (Graphic User Interface) user interface.

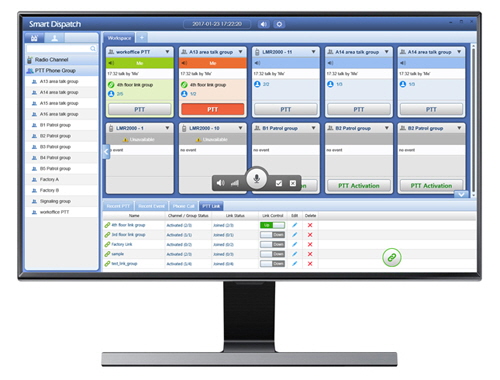

For large scale RoIP network like as disaster control center, Smart RoIP Dispatcher is a mandatory software component and most important product among RoIP product solution. AddPac Smart RoIP Dispatcher supports the workspace for each radio channel monitoring, PTT group link management, 1:1 PTT group call, 1:N PTT group call, Active PTT group list management, PTT call history management, event management, various additional supplementary service, etc

AddPac’s various RoIPPTT solution devices have been fully recognized in terms of its performance and stability throughout the world. AP-SRD100 Smart RoIP Dispatcher will provide full satisfactions for customers who seek for a next generation RoIP communication with our accumulated experience in the enterprise market and service provider market.

AP-RIP100 PTT Handset Audio Interface Panel for Window based VoIP & Radio Dispatcher System















AddPac AP-SRD100 wired/wireless communication control software is a MS-Window-based VOIP & Radio Dispatcher software, so it is difficult to connect a phone handset or a PTT handset

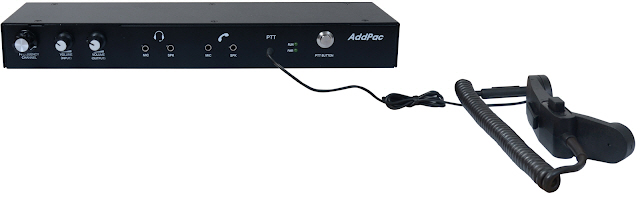

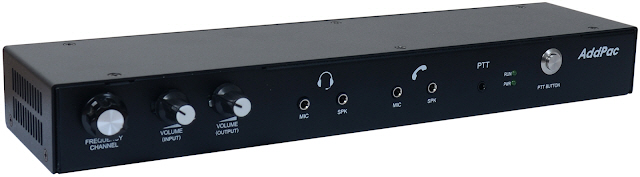

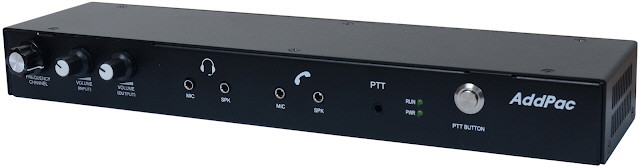

For this case, AP-RIP100 audio interface panel provides handset connectors. And AP-RIP100 supports headset connectors and PTT microphone connector. In addition, AP-RIP100 supports remote radio system frequency change rotary switch, volume control switch for input/output signals and PTT button.

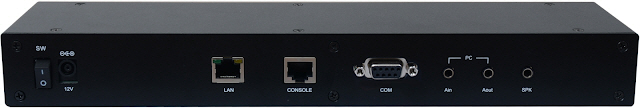

In rear side of AP-RIP100, it supports one LAN port, one RS232C console port, RS232C COM port for PC interconnection, PC audio in/out connector and speaker out connector.

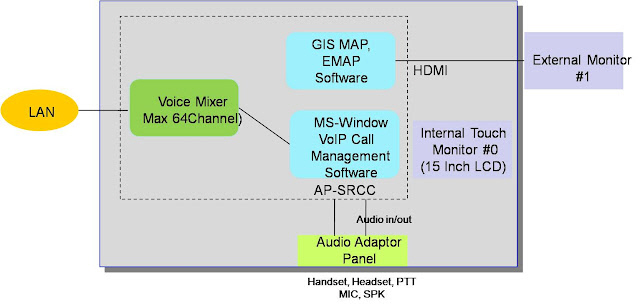

Software Block Diagram
