Title : 5 Inch Touch Screen LCD HD SIP Video Door Phone AP-VAC85 Release, HD IP Video Intercom Solution

5 Inch Touch Screen LCD HD SIP Video Door Phone AP-VAC85 Release, HD IP Video Intercom Solution

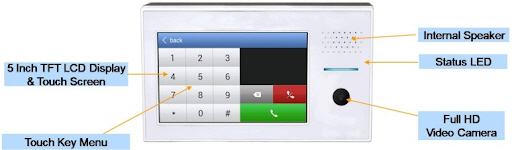

AP-VAC85 enterprise HD SIP video door phone is a visitor access control unit through video screen using internet. It uses the SIP standard video signal process feature, providing an excellent scalability by interworking with IP video phone, and soft video phone. It also supports the latest audio/voice codec at the optimum level. AP-VAC85 provides enterprise HD SIP video based visitor access control solution. For various application and flexible service, this product use 5inch TFT-LCD with touch screen feature.

AP- VAC85 HD SIP video door phone is a device to open and close the door after verifying the identity of visitor. It is embedded with alarm, relay output port, and RS485 interface function to control the door remotely by interworking with automatic door. AP-VAC85 supports both SIP video door phone management service and SIP based video door phone service. SIP based video door phone management function provides user management function, group management function, setup management function, and access log function.

AP-VAC85 HD SIP video door phone is combination of SIP VoIP signaling technology/video processing technology. AP-VAC85 provides 512Kpbs level of network so that user may use anywhere with internet connection. Especially, it applies high end “Error Resilience” technology to cope with various packet errors to secure optimum level of voice quality in limited bandwidth environments. And, for enhanced voice quality, AP-VAC85 supports full duplex voice communication scheme and acoustic echo canceller.

AP-VAC85 is embedded with Smart Web Manager for easy control of SIP video door phone. User may setup/manage IP video door phone through PC, smart phone, and tablet device.

AddPac VoIP and Multimedia products are well recognized in terms of performance and stability throughout the world. With our accumulated experience in enterprise market and communication market, AP-VAC85 will satisfy the needs of customer along with AddPac video door access solution.

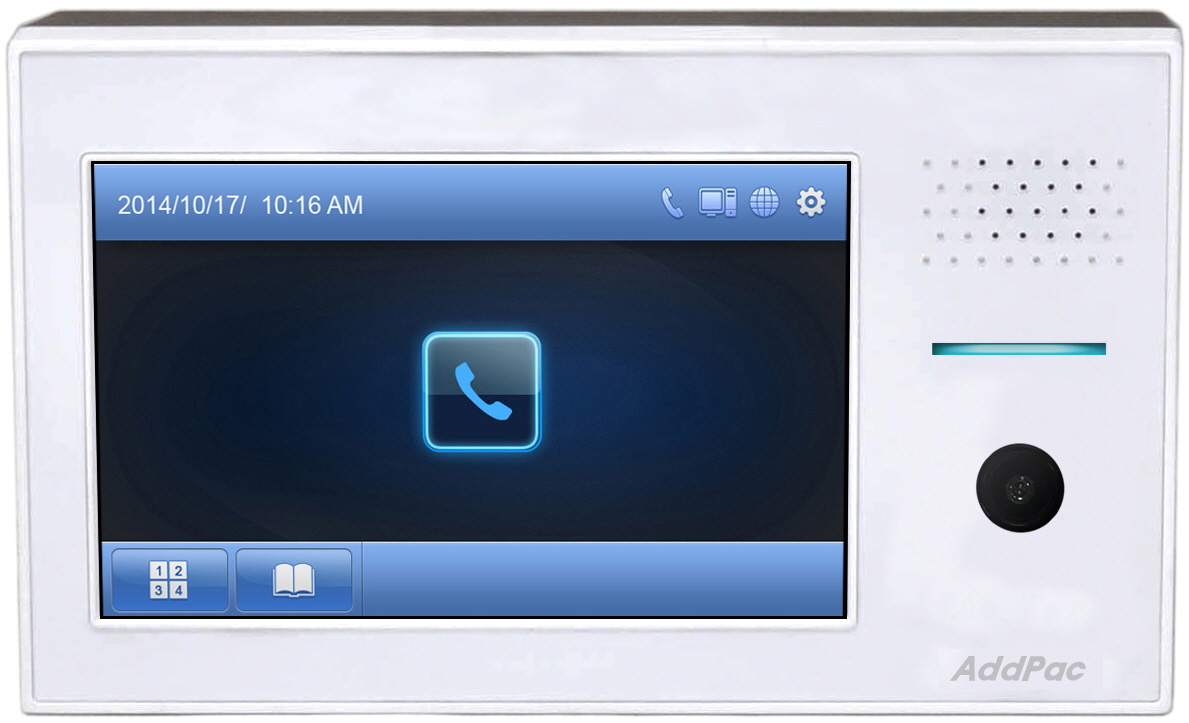

1. Single Button Dial Key Mode

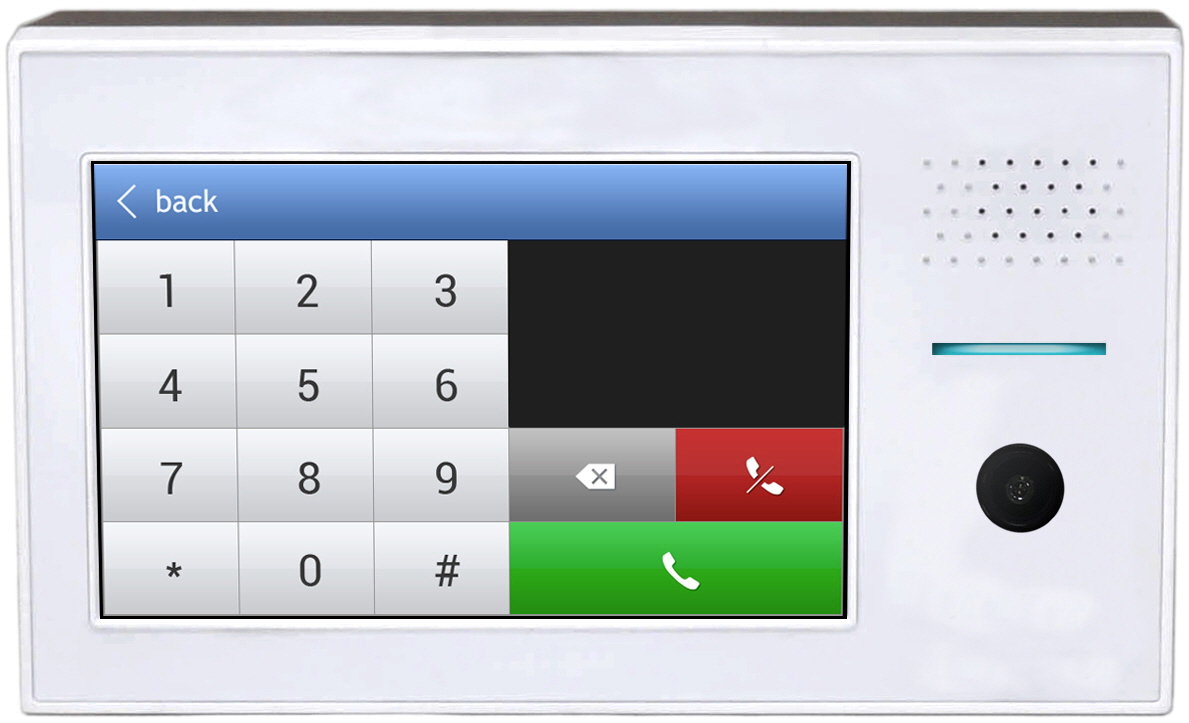

2. 3x4 Numeric Dial Key Mode

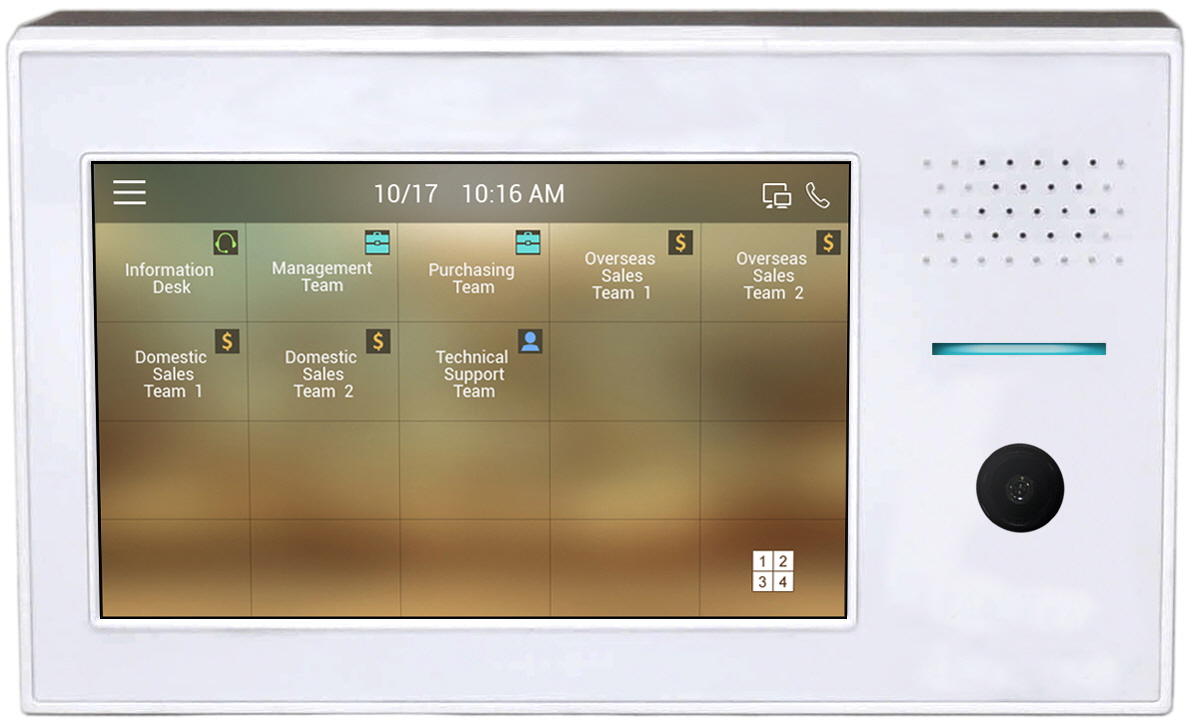

3. 20 Speed Dial Key Mode

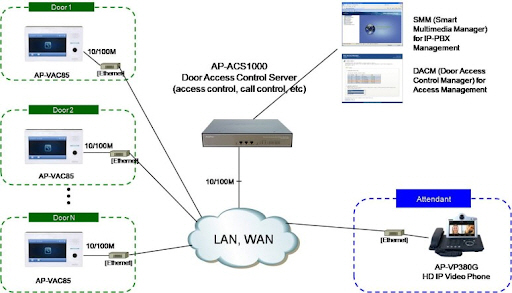

Network Diagram
