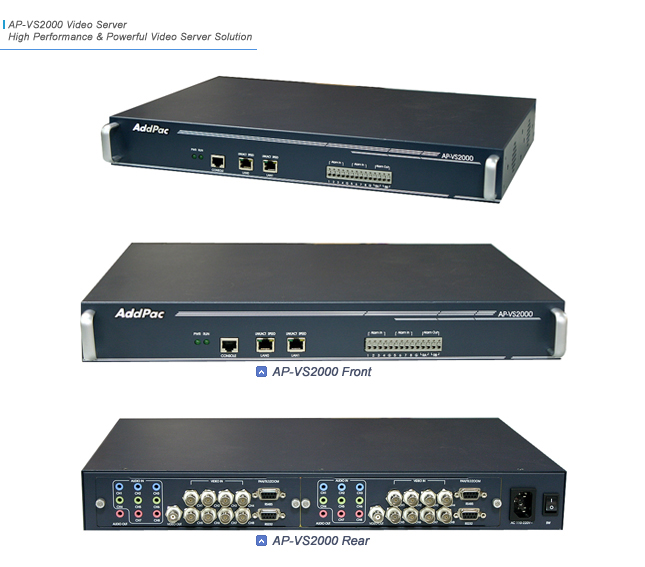

AP-VS2000 Video Server is a high quality next-generation multi-channel MPEG4 encoding video server. This product is designed to support 2-port 10/100 Mbps Fast Ethernet interfaces, two video encoder module slots (8-channel audio/video input per module, 1-channel audio/video output), 8-port alarms, and 4-port relay ports, and is available for various real-time video transmission such as high quality remote video surveillance.
AddPac AP-VS2000 is available for various WAN environments such as xDSL, cable modems, and dedicated lines, and is applicable to various fields such as remote video surveillance. Since AP-VS2000 is compatible with the video solutions of AddPac such as network DVR solutions, you can create an efficient network video surveillance environment by applying various devices depending on the application range and field.
D1-level Video Processing of 30 FPS
AP-VS2000 can process 30 fps D1 (720¡¿480) video resolution by using the MPEG-4 codec, and allows you to set a frame rate and an appropriate bit rate depending on the network status. If AP-VS2000 is connected to a PAN/TILT/Zoom camera, operators can remotely control camera PAN/TILT/Zoom via the RS232C or RS485 DB-9 control port of the codec modules.
Remote Control of All Features
AP-VS2000 allows you to check the status, configure features, and to upgrade the software remotely through Telnet or FTP in order to ensure reliability. Also, this product provides a separate management system based on GUI for an environment where several AP-VS2000s are operating at several places. Smart DVR Manager checks the status of AP-VS2000, and transmits audio/video to a place.
Application
AP-VS2000, which is the high quality MPEG4-based multi-channel video server, is available for various fields such as high quality video surveillance, traffic monitoring, and environment/fire surveillance.
Video Surveillance: The AV interface of AP-VS2000 has audio and video input/output ports. The audio and video are transmitted from a branch and are saved in AddPac Network DVR located at the headquarters in real-time. The manager can perform real-time surveillance through a monitor. This product is applicable to surveillance systems such as traffic monitoring, environment monitoring, and accident monitoring. AP-VS2000 transmits real-time voice broadcasting during monitoring to a site where an event has occurred to allow you to troubleshoot the error. In addition, audio input/output ports can be supported for unattended security and public services using interphones, audio announcements, and broadcasting with the video monitoring feature.

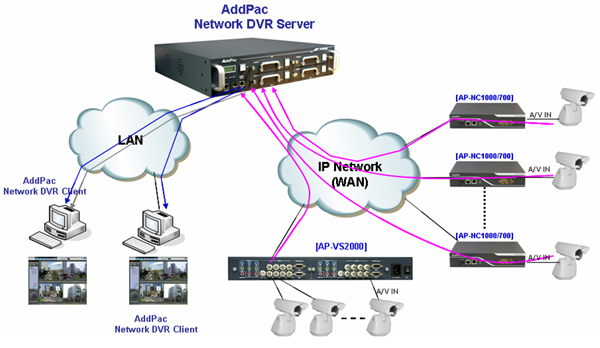

Network Diagram
Overall Features
IP-based real-time video surveillance systems
Hardware video codec based on high performance MPEG4
Embedded system based on high performance RISC CPU and
RTOS
Multi-site video transmission feature through advanced
QoS.
Integrated architecture where network surveillance and
audio broadcasting are supported
External alarms and relay interfaces
Audio/Video Features
Supported Codecs: Video codec MPEG-4 and voice codec
G.723
Supports up to two AV module slots.
¡¡
AP-DMP4-8 AV Module: Octal (8) video BNC input ports, one
video input port, Octal (8) audio input ports, one audio output port,
1-port RS232, 1-port RS485 camera PAN/TILT/ZOOM controlling port
Processes D1 video by 30 fps.
Network Services
IGMP supporting for Multicast Audio Broadcasting Service
Multilevel QoS Support including AddPac Specialized QoS
Algorithm
High-performance IP-Routing Capability with Reliability
Staticv2 and IEEE 802.1Q VLAN Routing Protocols including
VRRP
Traffic Queuing, and SNMP MIB v2 for Network Management
Features
Standard & Extended Access List for Security Functions
Essential Scalability Features such as DHCP Server &
Relay, NAT/PAT, IEEE Transparent Bridging, IP Accounting, and
Debugging/Diagnostics, etc.
System Performance Analysis for
Process, CPU, Connection I/F
Configuration Backup & Restore
for APOS Managements
Debugging, System Auditing, and
Diagnostics Support
System Booting and
Auto-rebooting with Watchdog Feature
System Managements with Data
Logging
IP Traffic Statistics with
Accounting
Other Scalability Features
DHCP Server & Relay Functions
VRRP Service for Load Balancing & Auto Recovery
Network Address Translation (NAT) Function
Port Address Translation (PAT) Function
Transparent Bridging (IEEE Standard) Function
¡æ Spanning Tree Bridging Protocol Support
¡æ Remote Bridging Support
¡æ Concurrent Routing and Bridging Support
Video Surveillance: The AV interface of AP-VS2000 has audio and video input/output ports. The audio and video are transmitted from a branch and are saved in AddPac Network DVR located at the headquarters in real-time. The manager can perform real-time surveillance through a monitor. This product is applicable to surveillance systems such as traffic monitoring, environment monitoring, and accident monitoring. AP-VS2000 transmits real-time voice broadcasting during monitoring to a site where an event has occurred to allow you to troubleshoot the error. In addition, audio input/output ports can be supported for unattended security and public services using interphones, audio announcements, and broadcasting with the video monitoring feature.
