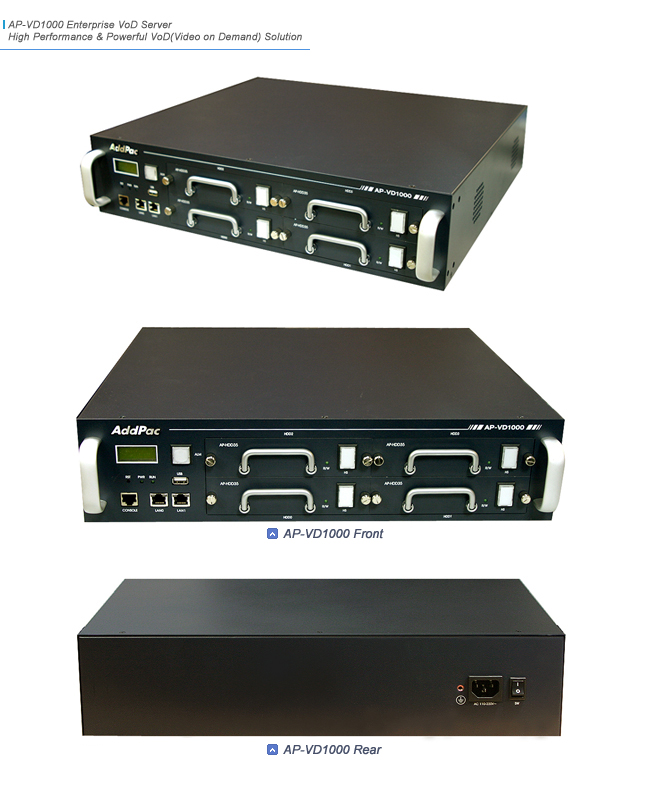

AP-VD1000 Enterprise VoD Server is a digital VoD streaming device based on a high quality next-generation network. This product is configured with 2-port 10/100/1000 Mbps Gigabit interfaces and four IDE-type 3.5-inch HDD module slots, and can provide VoD services for live or recorded video. AP-VD1000 can enable RAID1 redundancy configuration, and is available in a variety of multimedia network environments.
The demand for the embedded enterprise VoD server that supports reliability and high quality video services has been increasing as network-based high quality multimedia communication services are getting popular in enterprises.
If AP-VD1000 is used as an enterprise VoD server, install a hard disk on the front panel to provide services. A hard disk of 250 Gigabytes can accommodate 1 terabytes of storage capacity, and RAID1 configuration enables VoD streaming services of 500 Gigabytes.
Hardware Embedded Enterprise VoD Server
AP-VD1000 is an advanced device where the high quality CPU module designed and developed by AddPac is combined with the real-time OS (APOS) and embedded hardware to provide VoD services. An advanced embedded RISC processor and a reliable embedded OS that support Gigabit Ethernet are used for this product to ensure better performance and efficiency.
Firmware Upgrade-Enabled High Performance RISC Processor
Since the high-performance RISC processor modules installed into AP-VD1000 are all programmable, the features of AP-VD1000 can continue to be improved, changed, or added. You can flexibly adapt to future technology evolution. If you download an added or changed feature from the home page directly or set an automatic upgrade option whenever feature addition or change is done, you can use the latest feature without further operations.
USB Interface Supported
The front panel of AP-VD1000 has the USB 2.0 master mode interface. This interface supports USB DVD/CD Reader/Writer, USB Flash memory, USB hard disks, USB keyboards, and USB mouse. You can connect several USB devices to one another by connecting this interface to the USB hub. A separate power supply device should be used for a USB device that requires much power consumption. A VoD application uses the USB DVD storage device to download video data recorded in DVD to the hard disk.
Various Network Features and Advanced QoS Feature
AP-VD1000 supports the latest features and advanced services ranging from the ones (e.g. a variety of network protocols, better Quality of Service (QoS), and the error concealment technology) specialized for an environment for video communication services to the Virtual Router Redundancy Protocol (VRRP) service for preventing a failure and load balancing. Accordingly, AP-VD1000 can address various issues that may occur depending on network environments.

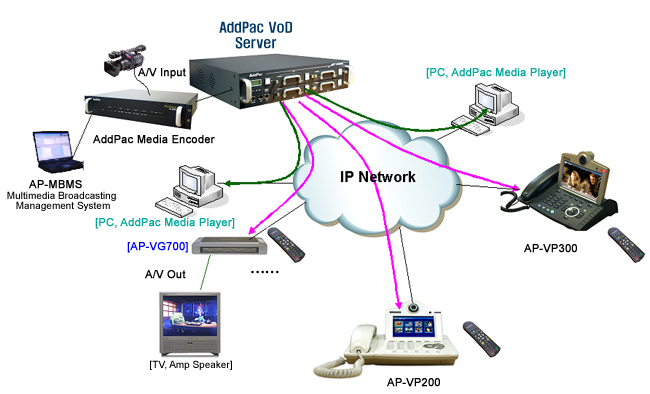

Network Diagram
Overall Features
Embedded system based on high performance RISC CPU and RTOS
Supports two Gigabit Ethernet interfaces.
Supports redundancy of 3.5-inch IDE hard disk (RAID1).
Four IDE-type hard disk slot modules
LCD panel and HDD hot swap lamp for checking the device
Supports the USB 2.0 host interface.
Supports reliable integration with the third party
caching and streaming media server.
Transmits video to multiple sites through IGMP
multicasting and better QoS.
Network Services
IGMP supporting for Multicast Video Broadcasting Service
Multilevel QoS Support including AddPac Specialized QoS Algorithm
High-performance IP-Routing Capability with Reliability
Static and IEEE 802.1Q VLAN Routing Protocols
including VRRP
Traffic Queuing, and SNMP MIB v2 for Network Management Features
Standard & Extended Access List for Security Functions
Essential Scalability Features such as DHCP Server & Relay, NAT/PAT,
IEEE Transparent Bridging,
IP Accounting,
and Debugging/Diagnostics, etc.
DNSProxy, MAC Address Filter Service
Microprocessor
CPU
High
Performance RISC Integrated Host Processor
Memory
Flash Memory
8MB
SDRAM Memory
128MB
Boot Memory
512Kbyte Flash Memory
HDD
Interface
Hard Disk
Type
3.5 Inch
IDE Type
Hard Disk
Slot
Four(4)
Slot, Hot-Swap, RAID1 Configuration
LAN Interface
One(1) 10/100/1000Mbps Fast Ethernet
One(1) 10/100/1000Mbps Fast Ethernet
One(1) RS232C Interface
USB Port
USB 2.0
Host
Interface
Power &
Operation Environments
Power
Requirement
Power VAC
110~220V, 50/60Hz, 5V 10A, 12V 4A
Operating
Temperature
0¡ÆC to +
45¡ÆC (32¡Æ to 112¡ÆF)
Storage
Temperature
-40¡ÆC to +
85¡ÆC (-40¡Æ to 176¡ÆF)
Relative
Humidity
5% to 95%
(Non-condensing)
Dimension
Weight (Kg)
10.12Kg
WxDxH
(mm)
440mm x 392mm x 100mm (WxDxH)
LAN Protocol
Static and IEEE 802.1Q VLAN Routing Protocols including VRRP etc
System
Performance Analysis for Process, CPU, Connection I/F
Configuration Backup & Restore for APOS Managements
Debugging,
System Auditing, and Diagnostics Support
System
Booting and Auto-rebooting with Watchdog Feature
System
Managements with Data Logging
IP Traffic
Statistics with Accounting
Other Scalability Features
DHCP Server
& Relay Functions
VRRP Service for Load Balancing & Auto Recovery
Network Address Translation (NAT) Function
Port Address Translation (PAT) Function
Transparent Bridging (IEEE Standard) Function
¡æ Spanning Tree Bridging Protocol Support
¡æ Remote Bridging Support
¡æ Concurrent Routing and Bridging Support
