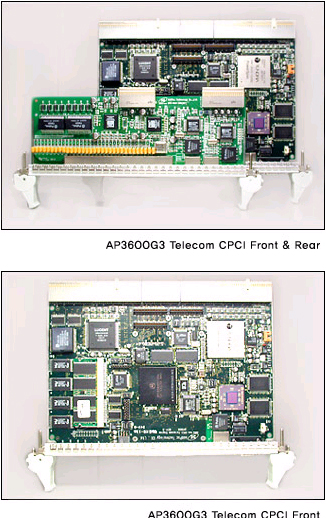

AP3600G3

Processor	Microprocessor	MPC8260 133/133/66MHz (Optional MPC8260 166/133/66MHz) (Optional MPC8260 200/133/66MHz)
		MPC750 200MHz (Optional MPC750 300/400MHz)
	On-Board L2 Cache	1Mbyte for MPC750 G3 Processor
Memory	Flash Memory	8Mbyte On-board Flash Memory
	SDRAM	64Mbyte SDRAM(SODIMM Type) (Optional 128 Mbyte SDRAM)
	EEPROM	32Kbyte On-board EEPROM
I/O Capabilities	Front Card	One 10/100BaseTx Ethernet (RJ-45)
		One RS-232C (DB-9)
	Rear Card	8 E1/T1(RJ-48C)
		Two 10/100BaseTx Ethernet (RJ-45)
CompactPCI Platform and Interface	Form Factor	6U Eurocard CompactPCI form factor
	Host Interface	Compliant with PCI Specification R2.1, 2.2
	CompactPCI	PICMG CompactPCI Specification R2.1, 2.2
	PMC Slot	One PMC slot
	Hot Swap	PICMG Hot Swap Specification R1.0
	J1, J2 PCI Bus	32/64bit, 33/66MHz PCI bus using PowerSpan Chip-set
	J4 CT Bus	ECTF H.110 Compliant CT Bus using Lucent T8105 Ambassador Chip-set via J4
	J5 User define Bus	Provided through Rear Transition Module for 8 E1/T1 and Two 10/100BaseTx Interface
Environments	Temperature	0°C to + 55°C
	Relative Humidity	5% to 95%
	Power	+5Volt 20Watt
Dimension	Height, Depth	233.4mm(9.2in.)X160.0mm(6.3in.)
	Width, Front Panel Height	19.8mm(0.8in.)X261.8mm(10.3in.)
	Max. Component Height	15.0 mm(0.60in.)
