AddPac Technology introduces the innovative and next generation IP based VoD service solution that fully integrates video, audio and other collaborative data applications over any existing IP network. This solution provides the excellent performance for advanced VoD service as well as high quality network video broadcasting application to maximize customer satisfaction. AddPac's VSPP(VoD Service Provision Platform) VoD solution features high performance VoD streaming server, embedded media encoder system to provide real-time video/audio broadcasting with various models of video broadcasting terminals deployed each HQ and branch offices. A comprehensive family of AddPac's Video solution along with newly developed cutting-edge VoD solution provides high scalability for each organization to find the solution that best fits their application needs and budget. Its high level of flexibility and scalability also provides a future proof solution that's essential to keep pace with the inevitable technology and network environment changes.
Totally integrated VoD solution achieved by High performance Hardware Platform
AP-VSPP(VoD Service Provision Platform)'s components of VoD solution consist of a centralized VoD streaming server using commercial system such as Dell, HP and Intel servers, AP5840 media encoder system, VoD streaming server manager server/client, media encoder manager server/client, AP-VBMP S/W media player operated on PC, hardware terminals such as AP-VG700, AP-VR1000 and AP-VP300. Its powerful adoption of standard server system makes the VoD streaming server highly flexible in accordance with loadbalancing, processing capabilities and concurrent operations.
Hardware type, High-performance Embedded Media Encoder System for Maximum Quality of Service
AP5840 media encoder system is designed based on the combination of DSP hardware codec, real-time OS(APOS) and embedded hardware and it is ideal for encoding/decoding of high quality video. It also supports various networking features such as ATM, leased line service providing 4 fast ethernet ports and 4 module slots for expanded multimedia/network features. Moreover, this media encoder system comes with high performance DSP module for AP-AV1000 video processing capability to compress and deliver video/audio contents pursuant to bandwidth which set by operator. AP5840 media encoder system ensures consistent delivery of high quality service providing real-time video broadcasting features with minimized processing delay to deliver and play video in multiple endpoints.
A Complete Solution for Real-time, Live video-voice IP Broadcasting
The existing VoD solutions are PC based Store & Forward systems which are not good enough for real-time live video processing and application. But now more than ever, service quality is getting crucial beyond conventional solutions, AddPac's AP-VSPP (VoD Service Provision Platform) delivers both the real-time live video broadcasting and potent VoD service with outstanding performance and stability while offering scalable and cost-effective growth as customers' demand increase. AP5840 media encoder, AP-VG700, AP-VR1000 terminal equipments are designed on the basis of hardware codec and high performance RISC CPU which are suitable for high quality video broadcasting. AP5840 media encoder can be operated in real-time broadcasting mode and provide real-time video service with a range of hardware terminals. In addition, latest codecs which are used for video compressing supports high quality video with stability even in converged network. This system supports maximum 30 fps VGA(640¡¿480) based on the MPEG-4 and it is capable of controlling frame rate and bit rate according to the network availability.
A cutting-edge Solution-Broadcasting from a terminal
In the same manner of AddPac's IP voice broadcasting solution's prominent feature of broadcasting from a remote terminal, AddPac's VoD solution enables audio and video signals to be broadcasted from terminal to terminal as well as from server to terminal at the same time. It's because the terminal equipment support not only decoding function but also high performance encoding function. Furthermore, Its relay server function offers a resolution for traffic problem which is characteristic feature of video delivering operation. When encoded video signal is broadcasted to several video terminals in LAN via wide area network, defining one terminal as a relay server, will reduce network traffic in WAN section. Instead of sending video signals to several channels, it utilized only a single channel for traffic generation.
Multicasting and Advanced QoS features
AddPac's AP5840 media encoder not only provides services such as IGMP multicast protocol, advanced QoS(Quality of Service) and error concealment for the IP broadcasting environment but also offers advanced features such as VRRP(Virtual Router Redundancy Protocol) for load balancing and system failure prevent. It is well prepared for various situations occurring in unstable network quality.

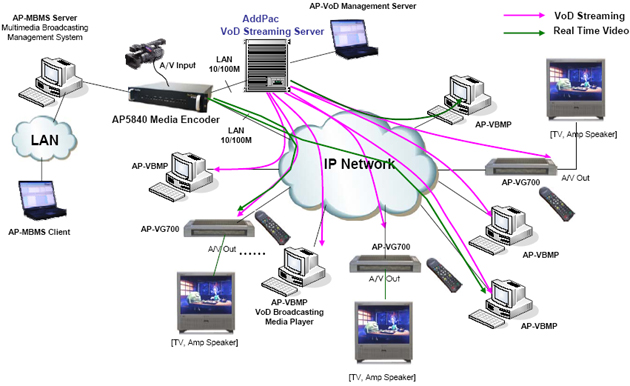

Network Diagram
Provide total solution for VoD service and
real-time video broadcasting
Optimized architecture for VoD service and
real-time video broadcasting
Support various embedded video terminals
Support hardware video codec on the basis of
programmable DSP for adopting new capabilities and advanced features
Support video codec of H.263,
MPEG-4, H.264
Up to 30 frames of VGA(640¡¿480)
image with MPEG-4
Support voice broadcasting
concurrently
Multicast video delivering with
IGMP and enhanced QoS
Support emission from terminals
Broadcasting relay feature for
low WAN bandwidth
Provides GUI management tool
based on JAVA for batch management
AP-VSPP VoD service solution comonents
¡¡
VoD streaming server VoD video streaming server. AP-VBMP
delivers video data to PC based media player and AddPac's video terminal
such as AP-VG700, AP-VR1000, and supports various VoD service operation
interworking with VSMS(VoD Service Management System) management tool.
¡¡
AP5840
Media encoder and video broadcasting server. AP5840 delivers the real time
video streams to VoD streaming server and various video broadcasting
terminals such as AP-VG700, AP-VR1000. It can control these terminals and
various broadcast services using PC based GUI management tool.
¡¡
AP-VR1000
AP-VR1000 is usually located at branch offices and receives video stream
from VoD streaming server or AP5840. It is also enabled to send encoded
video signals from camera or video player to network DVR system in a head
office. It has one multi service slot for various video/audio codec modules.
¡¡
AP-VG700
VP-VG700 is located at branch offices as usual and receives video stream
from VoD stream server and AP5840 as a terminal equipment. It also has
capability to send encoded video signals from camera or video player to
network DVR.
¡¡
AP-AV1000
AP-AV1000 is an AV module for AP-VR1000 broadcasting terminal. It consists
of one(1) channel video I/O interface, one(1) channel audio I/O interface
and RS422/RS232C control interface for camera Pan/Tilt/Zoom control.
¡¡
AP-VP300
AP-VP300 is IP video telephone equipped with built in "7 inch LCD
monitor and camera. It can be operated as a normal IP video telephone as
well as IP video broadcasting terminal of VoD streaming server or AP5840.
¡¡
AP-PSB
AP-PSB is a power control system. It controls AMP or TV power in remote
terminals that are connected to the broadcasting server.
¡¡
AP-VBMS (VoIP Broadcasting Management
System)
AP-VBMS is an media encoder management program for AP5840 which is based on
JAVA and web GUI. It is installed in a broadcasting management server
enabling broadcast status monitoring, scheduling, login management and
remote system management. This program supports the server-client
architecture which can define authorities of both system operator and master
system operator.
¡¡
AP-VSMS (VoD Service Management System)
VoD streaming service management tool based JAVA and web GUI. It is
installed in a VoD service management server enabling broadcast status
monitoring, VoD broadcasting, login management and remote system management.
This tool supports the server-client architecture which can define
authorities of both system operator and master system operator.
¡¡
AP-VBMP (Video Broadcasting Media Player)
Broadcasting terminal based on software which can receive VoD and real-time
video stream on desktop PC in audio/video broadcasting network constructed
with AddPac's VoD and broadcasting server.
