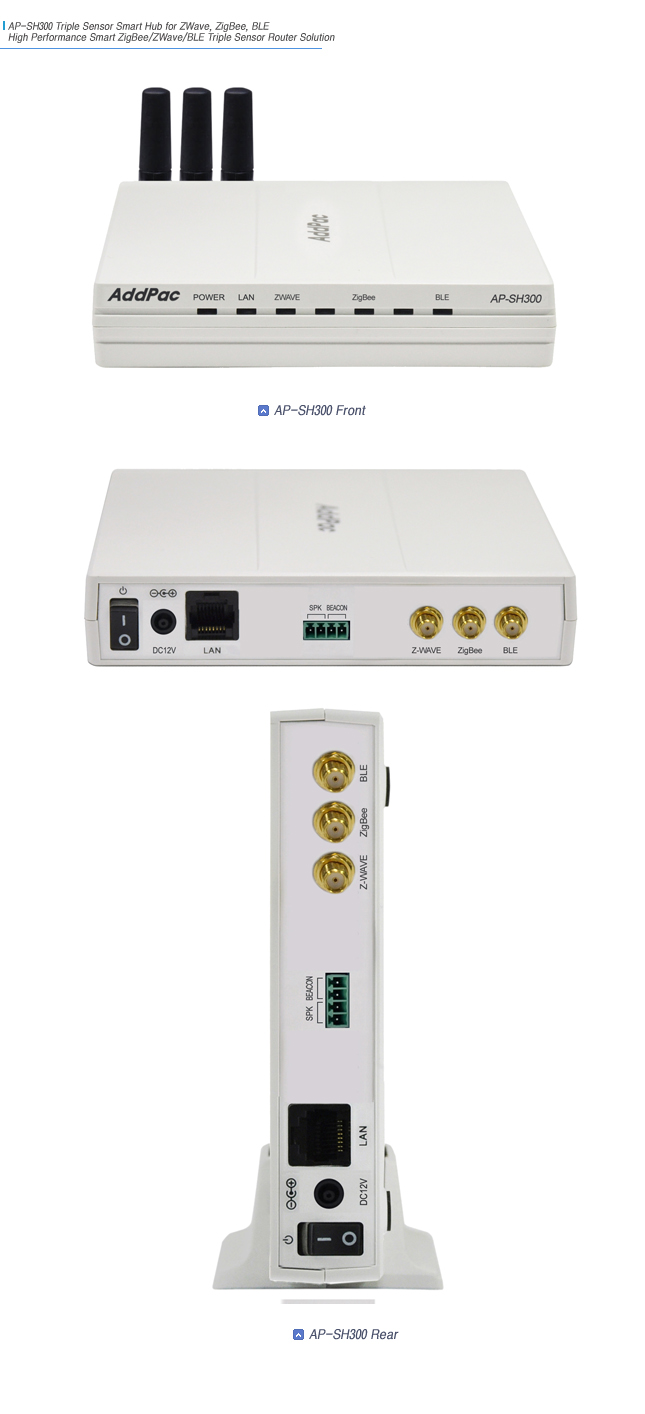

AP-SH300 smart hub is a triple sensor IP connectivity device for zigbee, zwave, BLE(Bluetooth Low Energy) sensor devices. It uses LAN interconnection feature, providing an excellent scalability by interworking with various zigbee/zwave/BLE sensor devices. AP-SH300 smart hub and AP-SH300 application software for smart phone will help to connect to various zigbee/zwave/BLE based sensors like as light switches, thermostats, and other devices. And since this smart hub is compatible with zigbee/zwave/BLE base smart sensors from various manufactures, AP-SH300 smart hub can easily add new smart sensor devices in your smart sensor network like as at home, outdoor collaboration application, etc.
Total Solution for Smart Sensor Device Application (Smart Home, Smart Security, etc)

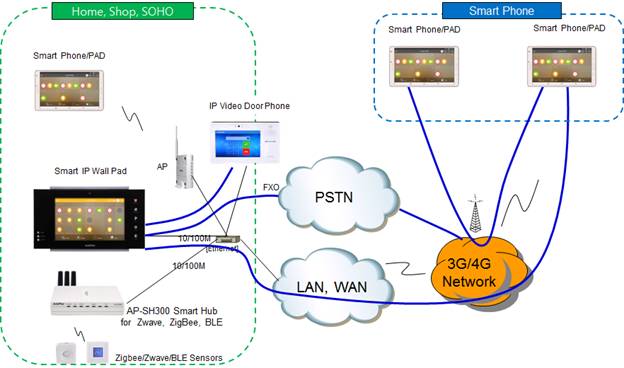

AddPac smart home equipment solution is to control zigbee/zwave/BLE smart home sensor devices, to control the visitor access through SIP video door phone which can be installed at the home entrance, and to monitor the smart home IP camera video with internet connectivity. AddPac smart home equipment solution consists of smart wall pad(AP-VWP80, AP-VWP100), sip video door phones, smart hub for zigbee/zwave/BLE sensor devices, various zigbee/zwave/BLE based sensor devices, video phones for security guard, and smart pad/tab and smart phone appl, to provide an excellent scalability.
External Antenna Type for Zigbee/Zwave/BLE
AddPac AP-SH300 smart hub supports the external antenna interface for zigbee/zwave/BLE. For indoor application like as home, small & short antenna style is recommended and this short antenna is directly connected on antenna interface connector of AddPac smart hub. AddPac supports several antennas such as AP-Z-ANT0, AP-Z-ANT1, AP-Z-ANT2 for AP-SH300 according to zigbee/zwave/BLE application, location (indoor, outdoor, basement), etc.
AP-Z-ANT0 has no cable and very easy to handle. This antenna is very comfortable when AP-SH300 smart hub is installed in open space and very close to window side in home or office building when smart sensor is located in window closed area.
AP-Z-ANT1 antenna has 2m cable length. So this antenna is very applicable when smart hub is installed in side of home or building and smart sensors are located in outdoor area. This antenna provides reasonable performance when smart hub installation location is also close to window side in office building. But it is little bit difficult to handle and manage because this antenna also has 2m cable length.
AP-Z-ANT2 gsm antenna has 20m cable length and big antenna height comparing with previous one. This antenna is special ordering item and expensive. Normally long distance cable antenna length means antenna performance degradation due to resistance characteristic. To compensate performance degradation due to cable length, we increase the antenna height and cable diameter. This antenna is very useful for underground installation when smart hub installation location is too far to window side in office building especially.
Firmware Upgradeable Structure
AP-SH300 RISC CPU is programmable structure so that user may use the latest features without much effort by simply setting an auto upgrade option or download from the homepage.
Smart Web Manager Function
AP-SH300 is embedded with smart web manager for easy control of smart hub. User may setup/manage smart hub through PC, smart phone, and tablet device.
AddPac various VoIP, Video and multimedia products are well recognized in terms of performance and stability throughout the world. With our accumulated experience in enterprise market and communication market, AP-SH300 will satisfy the needs of customer along with AddPac smart senor application solution.
Smart Hub Solution for ZigBee/ZWave /BLESensor
Support various ZigBee, ZWave, BLE Sensor
Wireless Sensor Network to IP connectivity
Triple Wireless Sensor Interface Support (Zigbee,
Zwave, BLE Router Interface)
High Performance Programmable RISC Processor
External Antenna Interface Support (Zigbee,
Smart Web Manager
Network interface: 10/100Mbps fast Ethernet
interface x 1
Smart Phone Application Software Support
Optional PoE Support
High Performance RISC H/W Architecture
Network Interface Module
One(1) 10/100Mbps Fast Ethernet
Triple Sensor Interface
BLE(Bluetooth Low Energy) Interface
External Power VAC 110~220 VAC, 50/60Hz, 5V 2A
PoE (Power over Ethernet)
Input voltage range 36V to 57V
