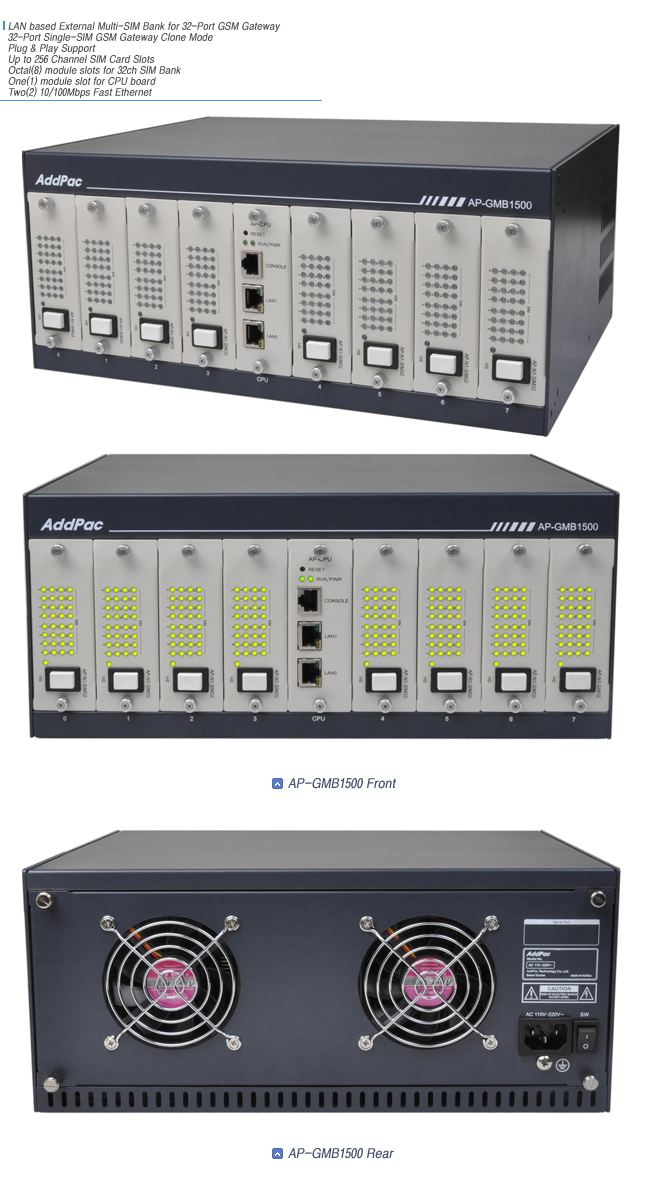

AddPac AP-GMB1500 is a new cutting edge LAN based External GSM Multi-SIM Bank supporting maximum 256 channel SIM slots. AP-GMB1500 provides an optimized External Multi-SIM Bank solution when it interoperates with AddPac 32-Port single SIM GSM gateways such as AP-GS3000, AP-GV3200. Compact cost effective design and system architecture of AP-GMB1500 provides customer satisfaction in high quality, performance and system reliance. This system helps that a user want or moves to multi-sim application in case a user already have a single-sim gsm gateway like as AP-GS3000.

Multi-SIM bank solution for AddPac 32-Port GSM Gateway

AddPac AP-GMB1500 is a device that can support GSM Multi-SIM bank application for AddPac 32-Port GSM Gateway Device. AP-GMB1500 supports AddPac 32-port single SIM GSM gateways such as AP-GS3000, AP-GV3200, etc. It also supports eight(8) module slots for GSM SIM bank, one(1) module slot for CPU board, two(2) fast ethernet ports, 1-port RS232C console, and state-of-art technologies and services. As a clone mode device of AddPac 32-Port GSM gateway, all control of AP-GMB1500 is operated by GSM Gateway Smart Web Manager. Also, AP-GMB1500 supports Plug & Play service for simple installation.

Supports maximum 256channel SIM slots

AddPac AP-GMB1500 GSM Multi-SIM bank combining GSM gateways is now suggesting a new model for single port multi-SIM mobile voice communication solution. In order to be a part of advanced mobile voice communications naturally in the future, making an excellent choice of choosing GSM Multi-SIM bank with GSM gateway is essential. AddPac AP-GMB1500 is a mid-range GSM multi-SIM Bank providing total 256 SIM interfaces slots (octal(8) module x 32SIM = 256 SIM Slots). A SIM bank module supports 32 channel SIM slots. It is suitable for general enterprises, call termination service provider, medium and large public offices.

AP-GMB1500 Multi-SIM Bank and AP-GS3000 32-Port GSM Gateway

Powerful networking protocols

VoiceFinder AP-GMB1500 GSM multi-SIM bank supports two(2) fast Ethernet Interface ports and provides stabilized leased line environment, ADSL environment, cable modem environment, fixed IP Address, supports all flow IP environment so that it can be selected in accordance with user environments.

Smart Web Manager for multi-SIM GSM Gateway

Smart Web Manager of AP-GS3000 Multi-SIM GSM gateway is almost similar to Smart Web Manager of single-SIM AP-GS3000 GSM gateway with AP-GMB1500. If user already well know about AddPac Smart Web Manager of Multi-SIM GSM Gateway, it is very easy to learn.

Smart Web Manager for Multi-SIM GSM gateway

Adapt to the Future Environment : Firmware Upgradeable Technology

Designed on programmable high performance RISC CPU Technology, AP-GMB1500 is capable of adopting new capabilities and improvement by downloading firmware from website or with its auto-upgrade option as the customers' needs grow. Moreover, operators can download the latest protocol or service improvements as well as update firmware by checking the version and activating the auto-upgrade via AP-NMS (Network Management System).

AddPac GSM Total Solution

AddPac technology is not just a vendor of GSM Multi-SIM Bank Device for the customer satisfaction, but it provides various products for appropriate network environment for GSM, CDMA, 3G, VoIP, Media Gateway, IP-PBX, Video Conference audio/video terminals, audio/video MCU, IP audio/video broadcast, VoD solutions, network DVR solution, audio/video recording solutions, and traffic controller QoS device solutions. In the future, All IP based multimedia telephony environment, various audio/video resources should be shared on an IP Network; thus, the integration of solutions for each area and entire solutions are considered as top priority. AddPac IP telephony solution is designed to consider the integrated multimedia solution so that it can satisfy the various needs of customer.

AddPac’s various GSM, VoIP Gateway series and multimedia network devices have been fully recognized in terms of its performances and stability throughout the world. AP-GMB1500, with our accumulated experiences and know-how in the enterprise and service provider markets, will provide full satisfactions for customers who ask for a next-generation GSM VoIP gateway and GSM Multi-SIM Bank Solution.

Network Diagram

Overall Features
	High-performance GSM Multi-SIM Bank Modular Architecture
	Seven(7) Voice Interface Slots ① AP-N1-SIM32 32-channel GSM SIM Slot Interface Module
	Supports maximum 256 channel GSM SIM slot interface
	Flash Memory: 512Mbyte, Main Memory : 128Mbyte DDR2
	GSM SIM bank module AP-N1-SIM32 : 32-channel GSM SIM bank Module
	Two(2) port 10/100Mbps Fast Ethernet interface
	AddPac 32-Port GSM Gateway Clone Mode solution for Multi-SIM Application
	Controlled by Single-SIM GSM Gateway Smart Web Manager
	High-performance IP-Routing Capability with Reliability
	Traffic Queuing, and SNMP MIB v2 for Network Management Features
	Standard & Extended Access List for Security Functions
