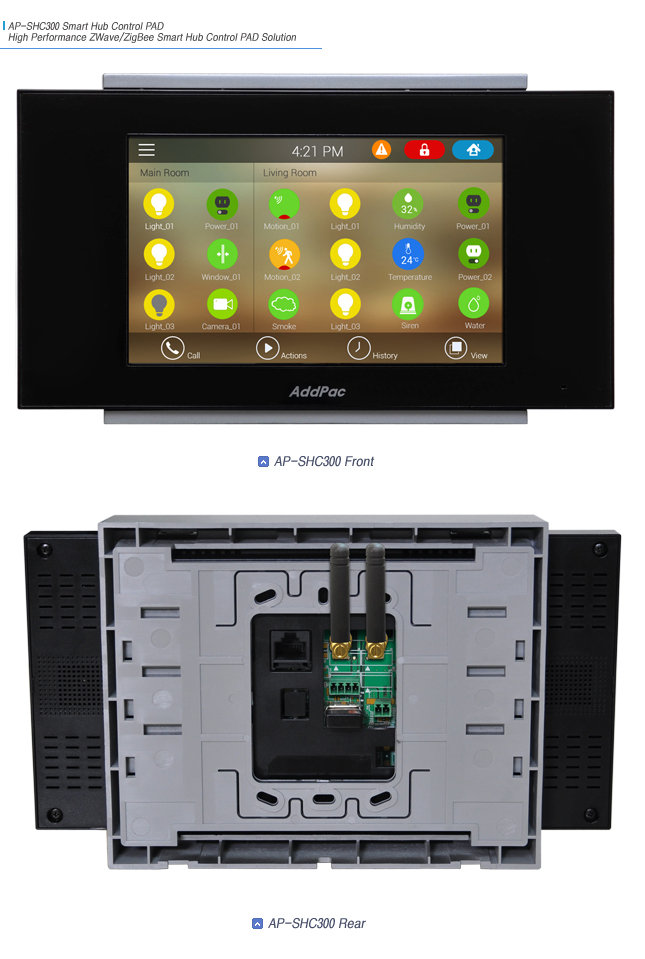

AP-SHC300 smart hub control PAD for zigbee/zwave sensors is a 7inch LCD built-in sensor control and monitoring wall PAD device for zigbee/zwave sensor devices. It uses LAN interconnection feature, providing an excellent scalability by interworking with various zigbee/zwave sensor devices. AP-SHC300 smart hub control PAD will help to connect to various zigbee/zwave based sensors, light switches, thermostats, and other devices. And since this smart hub control PAD is compatible with zigbee/zwave base smart sensors from various manufactures, AP-SHC300 smart hub control PAD can easily add new smart sensor devices in your smart sensor network like as at enterprise, factory, etc. Also, this product supports USB based wifi LAN interface besides one(1) fast ethernet port.

Total Solution for Smart Sensor Device Application

AddPac IoT (Internet of things) equipment solution is to control and monitor zigbee/zwave sensor devices for various filed application. AddPac IoT equipment solution consists of smart hub and enterprise smart hub for zigbee/zwave sensor devices, smart hub control PAD, smart sensor wall PAD, various zigbee/zwave based sensor devices, smart sensor network controller, application specific management software, and smart pad/tab and smart phone appl, to provide an excellent scalability.

Firmware Upgradeable Structure

AP-SHC300 RISC CPU is programmable structure so that user may use the latest features without much effort by simply setting an auto upgrade option or download from the homepage.

Smart Web Manager Function

AP-SHC300 is embedded with smart web manager for easy control of smart hub. User may setup/manage smart hub control PAD through PC, smart phone, and tablet device.

AddPac various VoIP, Video and multimedia products are well recognized in terms of performance and stability throughout the world. With our accumulated experience in enterprise market and communication market, AP-SHC300 will satisfy the needs of customer along with AddPac smart senor application solution.

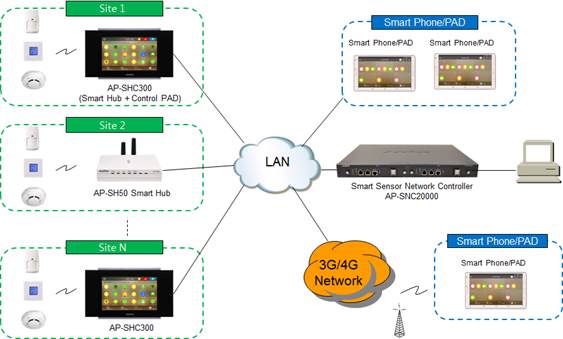

Network Diagram

Overall Features
	Smart Hub Solution for ZigBee/ZWave Sensor Devices.
	Touch Screen based 7 inch TFT LCD
	Wireless Sensor Network to IP connectivity support
	Dual Wireless Sensor Interface Support (ZigBee, ZWave Dual Interface)
	High Performance Programmable RISC + DSP Processor
	External Antenna Interface Support (ZigBee, ZWave)
	Smart Web Manager
	Flash Memory 256MByte NAND, SDRAM 128MByte
	I/O Interface : RS232/RS485 Interface, Beacon Interface
	Network Interface: 10/100 Mbps Fast Ethernet Interface x 1, USB Interface for External WiFi USB Module x 1
	Internal SMPS Power : Option, Power Over Ethernet(PoE) : Option
Video Features
	High-performance IP-Routing Capability with Reliability
	Static, IEEE 802.1Q VLAN Routing Protocols including VRRP
	Traffic Queuing, and SNMP MIB v2 for Network Management Features
	Standard & Extended Access List for Security Functions
	Essential Scalability Features such as DHCP Server & Relay, NAT/PAT, IEEE Transparent Bridging, IP Accounting, and Debugging/Diagnostics, etc.
	DNSProxy, UPnP, MAC Address Filter Service
