AP-M2M300 3G UMTS M2M device provides wireless based multi-purpose machine-to-machine application service such as utility meter, remote digital billboard control, telematics, wireless ATM machine, etc. This product is designed based on high performance RISC CPU + DSP structure; supports firmware upgrade, the best quality product, offers various user-friendly functions, manufactured at low cost and this product gives high performance for its price.

3G wireless network based M2M device for various application

AddPac AP-M2M300 is a device that can support both 3G data service for internet access via LAN port or RS232C serial interface and remote utility metering service. It supports various network protocols for routing service and serial data modem service, one(1) channel 3G interface (antenna, USIM Card), one(1) fast ethernet port, one(1) RS232C serial communication channel (DB-9), analog signal input (voltage, current, pulse) for utility metering service, and alarm, relay out interface.

Powerful networking protocols

AddPac AP-M2M300 3G UMTS M2M device supports one(1) channel 3G data network interface and 10/100 Base-T fast ethernet Interface port and supports all flow IP environment so that it can be selected in accordance with user environments. It also provides routing function and internet application function using APOS (AddPac Operating System) network protocols. So it supports M2M application service in economical and effective way under wireless access and fast internet access environment.

Adapt to the Future Environment: Firmware Upgradeable Technology

Designed on programmable high performance RISC Integrated DSP Technology, AP-M2M300 is capable of adopting new capabilities and improvement by downloading firmware from website or with its auto-upgrade option as the customers' needs grow. Moreover, operators can download the latest protocol or service improvements as well as update firmware by checking the version and activating the auto-upgrade via AP-NMS (Network Management System) of AddPac Technologies.

AddPac M2M Service Total Solution

AddPac technology is not just a vendor of wireless/wired M2M device for the customer satisfaction, but it provides various products for appropriate network environment for Leased Line/ATM Router, VoIP gateway, mobile gateway/router, media gateway, IP-PBX, audio/video terminals, audio/video MCU, IP audio/video broadcast, VoD solutions, network DVR solution, audio/video recording solutions, and traffic controller QoS device solutions.
In the future, all IP based network environment, various wireless/wired data network resources should be shared on an IP network; thus, the integration of solutions for each and entire area are considered as top priority. AddPac M2M solution is designed to consider the integrated machine-to-machine application so that it can satisfy the various needs of customer.
AddPac’s various mobile gateway and router devices have been fully recognized in terms of its performances and stability throughout the world. AP-M2M3000, with our accumulated experiences and know-how in the enterprise and service provider markets, will provide full satisfactions for customers who ask for a next-generation M2M device.

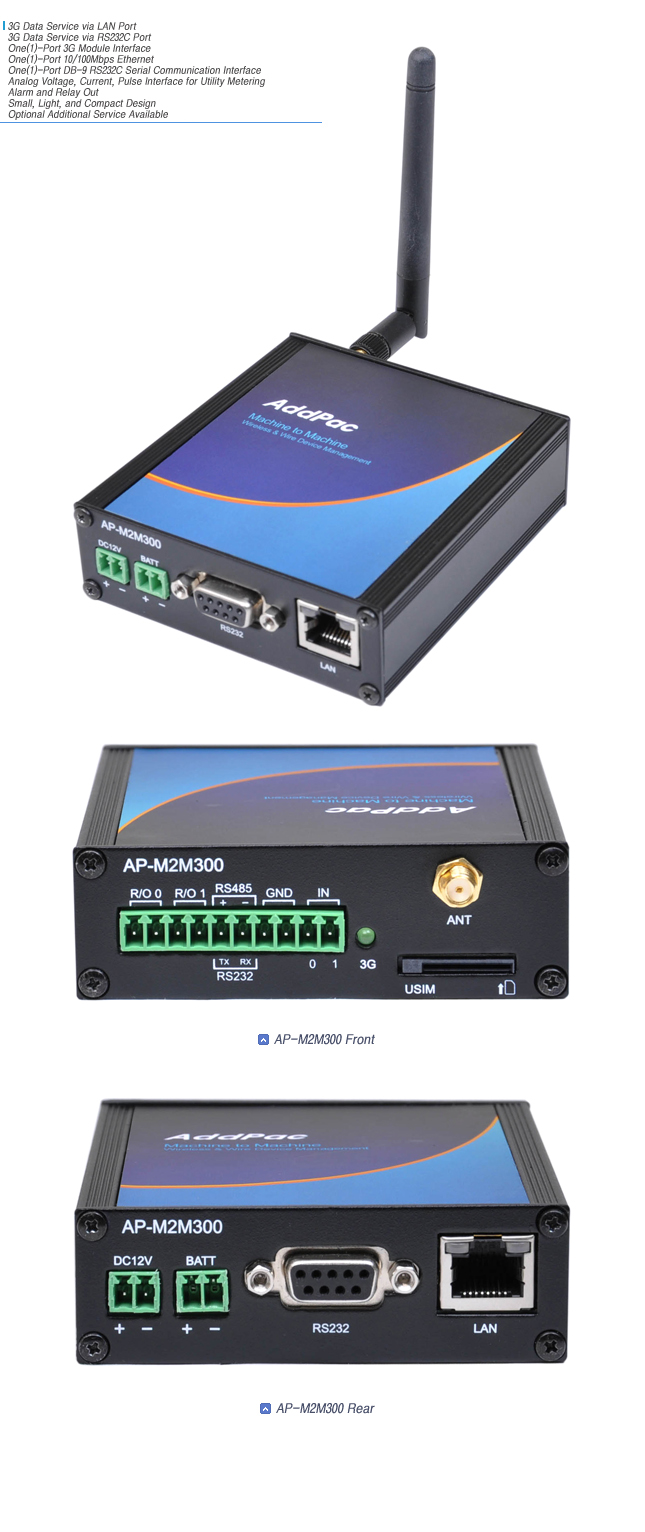

AP-M2M300	1-Port 3G Module
	1-Port Antenna Interface for 3G Service
	1-Port USIM Card Interface for 3G Service
	1-Port 10/100Mbps Ethernet Interface
	1-Port RS232C Serial Communication Interface (DB-9)
	I/O Interface for utility metering service

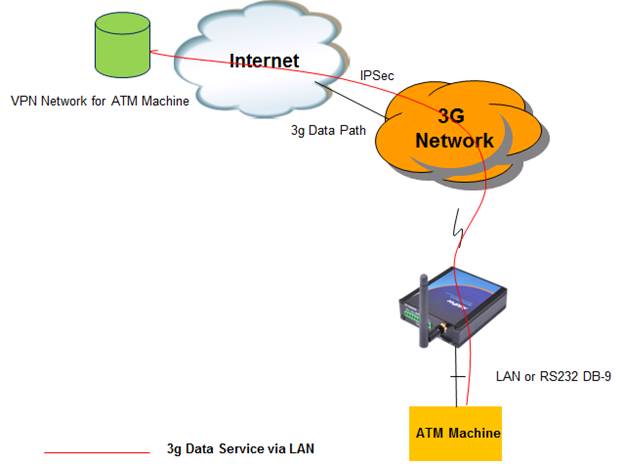

Network Diagram

Overall Features
	Powerful RISC Microprocessor + DSP Architectures
	One(1) 3G Module (Antenna, USIM Card) Interface
	One(1) 10/100Mbps Fast Ethernet Interfaces for LAN
	One(1) RS232C Serial Communication Interface
	I/O Interface (analog voltage, current, pulse) for utility metering Service
	Standard high-performance 3G router Service
	3G data service via LAN Port or RS232C Serial Port
	APOS Internetworking Software to provide Scalability, Functionality, Stability, and QoS Control for AddPac M2M device
	High-performance IP-Routing Capability with Reliability
	Static, Default IP-Routing and IEEE 802.1Q VLAN Routing Protocols
	Point to Point over Ethernet Protocol for ADSL based Broadband Network
	Optional PPTP, IPSec Protocol Support for Wireless Data Network like as 3G, GSM GPRS
	SNMP MIB v2 for Network Management Features
	Essential Scalability Features such as DHCP Server & Relay, NAT/PAT, IEEE Transparent Bridging, IP Accounting, and Debugging/ Diagnostics, etc.
	Remote Software Upgrade using FTP & TFTP
	Graceful Compact Design
