Overview

AP-EMBMS (Enhanced Multimedia Broadcasting Management System) is a broadcasting management system for voice broadcasting server (AP3120, AP3150, etc), broadcasting router, voice broadcasting terminal (AP1601, AP1605, etc) in IP based voice broadcasting solution.

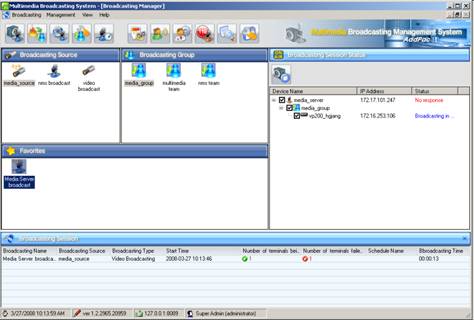

AP-EMBMS is designed with server/client structure under MS Window based PC platform environment. It is implemented with database and JAVA JRE 1.5. It is a software to support user register access restriction management, AddPac voice broadcasting device management, broadcasting source, group, favorite, reserved broadcasting, remote broadcasting management, broadcasting device inspection, and event history search

User Register and Access Restriction Management (User Management)

AP-EMBMS broadcasting management system is only designed for registered administrator to login. User register can be registered for each group and organization. User register information can register user name, user ID, and user password.

Broadcasting Device Management

AddPac Technology IP based voice broadcasting solution is composed of IP voice broadcasting server, and IP voice broadcasting terminal. Broadcasting device management function is to setup name of device, description, IP setup, device model, and remote broadcasting control function.

Broadcasting Source and Broadcasting Group Management

It is a software module to carry out broadcasting source and broadcasting group management feature. Broadcasting group management is used when executing broadcasting for each group. The function is composed of broadcasting group name register, broadcasting group name additional description, device (voice broadcasting terminal) register function. When using group broadcasting function, administrator may able to execute broadcasting service easily in enterprise. On top of that, user may manage broadcasting source by selecting broadcasting channel and media interface.

Reserved Broadcasting and Time Signal Broadcasting

It is a software to setup broadcasting source selection, register broadcasting schedule name, name of additional broadcasting schedule, setup broadcasting date/day, broadcasting time (setup start/end), and broadcasting file.

TTS (Text to Speech) (Optional)

It is a function to perform TTS based voice broadcasting and composed of TTS file list management function, and TTS file selection function. It converts text information into voice analog information with TTS engine.

Broadcasting Device Inspection Feature

It is a software function block to perform the status of broadcasting device. It uses internal protocol in order to check the products for defect by providing error device status on screen.


Event History Search Function

AP-EMBMS supports broadcasting event history management function. Use broadcasting event search function to provide status display and Log, Event, History for debugging when error occurs. It is very efficient management tool when operating IP broadcasting solution and help real time technical support.

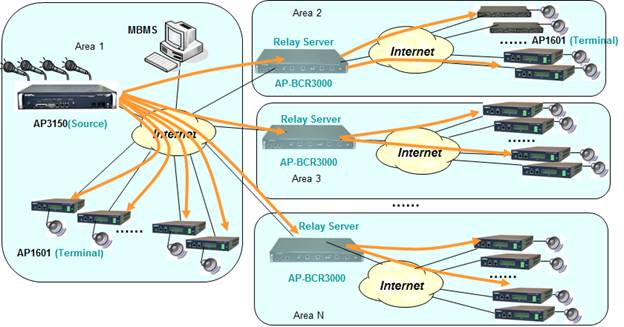

Network Diagram
