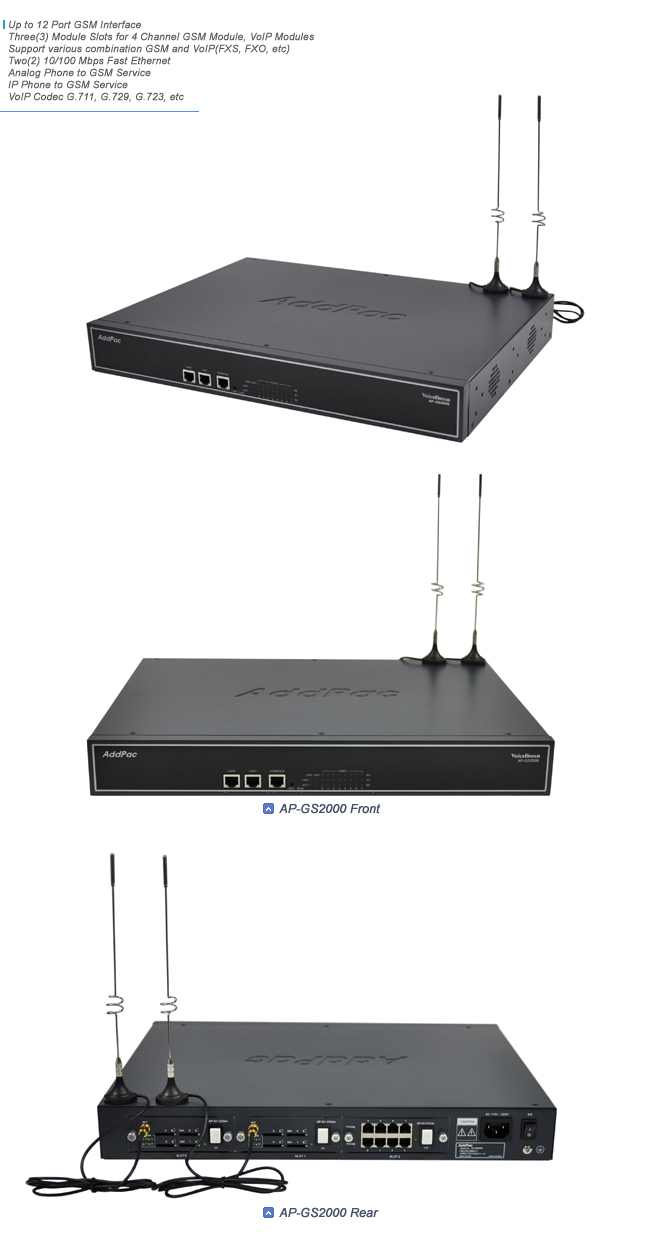

AP-GS2000 3G Gateway
VoiceFinder AP-GS2000 GSM VoIP Gateway High Performance & High Reliable GSM VoIP Gateway |
|
|
|
|
|
|
Overview |
VoiceFinder AP-GS2000 is a new cutting edge Analog or IP to GSM gateway supporting maximum 12 ports of GSM Voice interface. GSM and analog interface of AP-GS2000 provide an optimized call scenario when it interoperates with conventional PBX. Compact cost effective design and system architecture of AP-GS2000 provides customer satisfaction in high quality, performance and system reliance. This product uses the state-of-art technology voice compressed algorithm and unique QoS algorithm of AddPac to maintain the maximum voice quality under fast internet line and slow internet line as well.
GSM and VoIP Gateway Service Both Support
AddPac AP-GS2000 is a device that can support both GSM gateway service (FXS?GSM or Internet?GSM) and VoIP gateway service (FXS?Internet) simultaneously. It also supports SIP, H.323 Multiple VoIP signaling protocol, various voice codec support(G.711, G.726, G.729, G723.1), three(3) module slots for GSM and VoIP module, two(2) fast ethernet ports, 1-port RS232C console, and state-of-art technologies and services.
Supports maximum 12 ports of GSM interface
GSM gateway combining IP-PBX is now suggesting a new model for a main voice communication solution. In order to be a part of advanced VoIP communications naturally in the future, making an excellent choice of choosing GSM gateway is essential. VoiceFinder AP-GS2000 is a mid-range GSM gateway providing total 12 GSM interface ports or 8 GSM interface ports + 8 FXS interface ports. It is suitable for general enterprises, small and public offices. It has functions as a media gateway which interoperates with IP-PBX and it enables to replace small and mid size analog PBX. Especially AP-GS2000 provides an optimal solution of VoIP and GSM communications in telephony environments that using telephone lines and PBX to get connect with a head office.
Powerful networking protocols
VoiceFinder AP-GS2000 GSM VoIP Gateway supports two(1) 10/100 Base-T fast Ethernet Interface ports and provides stabilized leased line environment, ADSL environment, cable modem environment, fixed IP Address, supports all flow IP environment so that it can be selected in accordance with user environments.
Adapt to the Future Environment : Firmware Upgradeable Technology
Designed on programmable high performance RISC Integrated DSP Technology, AP-GS2000 is capable of adopting new capabilities and improvement by downloading firmware from website or with its auto-upgrade option as the customers' needs grow. Moreover, operators can download the latest protocol or service improvements as well as update firmware by checking the version and activating the auto-upgrade via AP-NMS (Network Management System) or AP-VPMS(VoIP Plug &Play Management System) system of AddPac Technologies.
Privacy function and Security function
AP-GS2000 not only supports network access control but it also provides solid service level security. By CID (Caller ID Detection), you can identify the phone number of callers before answering and simply block it.
AddPac IP Telephony Total Solution
AddPac technology is not just a vendor of GSM Gateway Box for the customer satisfaction, but it provides various products for appropriate network environment for VoIP, Media Gateway, audio/video terminals, audio/video MCU, IP audio/video broadcast, VoD solutions, network DVR solution, audio/video recording solutions, and traffic controller QoS device solutions. In the future, All IP based multimedia telephony environment, various audio/video resources should be shared on an IP Network; thus, the integration of solutions for each area and entire solutions are considered as top priority. AddPac IP telephony solution is designed to consider the integrated multimedia solution so that it can satisfy the various needs of customer.
AddPac¡¯s various GSM, VoIP Gateway series and multimedia network devices have been fully recognized in terms of its performances and stability throughout the world. AP-GS2000, with our accumulated experiences and know-how in the enterprise and service provider markets, will provide full satisfactions for customers who ask for a next-generation GSM-Gateway.
|
Overview |
Overall Features |
|
High-performance VoIP Modular Architecture |
|
|
¡¡ |
Three(3) Voice Interface Slots |
¨ç
|
AP-N1-GSM4 |
|
4-channel GSM interface (Antenna, SIM Card, Internal 4 Channel Antenna
Combiner)) |
¨è
|
AP-N1-FXS8 |
|
8-Port FXS Voice Processing Module (8 x RJ11) |
¨é
|
AP-N1-FXO8 |
|
8-Port FXO Voice Processing Module (8 x RJ11) |
¨ê
|
AP-N1-FXO4S4 |
|
4-Port FXO & 4-Port FXS Voice Processing Module(8 x RJ11) |
¨ë
|
AP-N1-E1 |
|
1-Port Digital E1/T1 Voice Processing Module (1xRJ45) |
|
|
|
|
Supports maximum 12- port GSM interface |
|
Flash Memory: 4MB, SDRAM 64MB |
|
GSM voice interface module : 4-Port GSM Module
|
|
Analog voice interface module: 8-Port FXS VoIP Module, 8-Port FXO VoIP
Module, 4-Port FXS 4-Port FXO VoIP Module |
|
Two port 10/100Mbps fast Ethernet interface |
|
SIP, H.323, MGCP concurrent triple stack |
|
Support Voice Processing Features
- VAD, DTMF,CNG,G.168, and T.38 G3 Fax Relay
- G.723.1,G.729A,G.711 Voice Compressions |
|
High-performance IP-Routing Capability with Reliability |
|
Static and IEEE 802.1Q VLAN Routing Protocols including VRRP |
|
Traffic Queuing, and SNMP MIB v2 for Network Management Features |
|
Standard & Extended Access List for Security Functions |
|
Essential Scalability Features such as DHCP
Server & Relay, NAT/PAT, IEEE Transparent Bridging, IP Accounting, and
Debugging/Diagnostics, etc. |
¡¡ |
- DNSProxy Support
- UPnP Support
- MAC Address Filter Service |
|

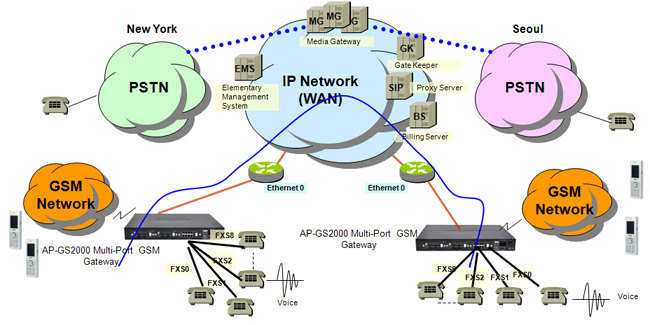

Network Diagram |
|
Hardware Speciification |
Microprocessor
|
High-End RISC Microprocessor |
Memory
|
Flash Memory |
4Mbyte |
SDRAM Memory |
64Mbyte High-Speed SDRAM |
Network Interface |
LAN Port |
Two(2) 10/100Mbps Ethernet Interface (2xRJ45) |
GSM Port |
Four(4) Channel Module
One(1) Antenna Interface(Internal 4 channel Antenna combiner)
Four(4) SIM Card Interface |
Voice Module Slots |
Three(3) Module Slots |
AP-N1-GSM4 Module |
AP-N1-FXS8 Module |
AP-N1-FXO8 Module |
AP-N1-FXS4O4 Module |
AP-N1-E1 Module |
Power & Operation Environments
|
Power Requirement |
Power Supply / 110~220VAC, 50/60Hz, 5V 8A,
40Watt |
Power ON/OFF Switch |
Operating Temperature |
0¡ÆC ~ 50¡ÆC (32¡Æ ~ 122¡ÆF) |
Storage Temperature |
-40¡ÆC ~ +85¡ÆC (-40¡Æ ~ +185¡ÆF) |
Relative Humidity |
5% ~ 95% (Non-condensing) |
Dimension
|
H x W x D (mm) |
56mm x 440mm x 318mm - 19" Rack Mountable
Chassis |
Weight (Kg) |
4.8 Kg |
|
|
Support Protocol and Service |
IP Routing Protocols |
Static and IEEE 802.1Q VLAN Routing |
WAN Protocols |
Point-to-Point over Ethernet Protocol for ADSL Networking (PPPoE) |
GSM Service |
GSM two-stage dialing |
GSM Module Management : PIN, IMSI, Power, (No)Shutdown
Setting, Up/Down Speed Display, Current Power Level Display |
GSM Inbound call black list & white list |
VoIP Inbound call black list & white list |
LCR(Least Cost Routing)-GSM Traffic Metering |
LCR(Least Cost Routing)-Scheduling |
LCR(Least Cost Routing)-Simulator |
GSM Messaging ServiceGSM SNMP : GSM Standard MIB |
Call Back Service at GSM Port Busy |
Voice over IP Services |
ITU-T H.323 v3 VoIP Protocol with ITU-T H.235
Security Feature |
SIP protocol support compliant with IETF
RFC3261(or RFC2543) |
Supports Triple stack of H.323, SIP and MGCP |
G.723.1, G.729.A, G.711 Voice Compressions |
Voice Processing Features Supports
- VAD, DTMF, CNG, G.168, and T.38 G3 FAX Relay |
ITU-T H.323 Gateway, Gatekeeper Support |
Enhanced QoS Management Features for Voice
Traffics |
Network Managements |
Standard SNMP Agent (MIB v2) Support |
Remote Management using Console, Rlogin, Telnet
|
Web based Managements using HTTP Server
Interface |
Traffic Queuing |
Security Functions |
Standard & Extended IP Access List |
Enable/Disable for Specific Protocols |
Multi-Level User Account Management |
Auto-disconnect for Telnet/Console Sessions |
PPP User Authentication Supports
- Password Authentication Protocol (PAP)
- Challenge Handshake Authentication Protocol (CHAP) |
Operation & Managements |
System Performance Analysis for Process, CPU,
Connection I/F |
Configuration Backup & Restore for APOS
Managements |
Debugging, System Auditing, and Diagnostics
Support |
System Booting and Auto-rebooting with Watchdog
Feature |
System Managements with Data Logging |
IP Traffic Statistics with Accounting |
Other Scalability Features |
DHCP Server & Relay Functions |
Network Address Translation (NAT) Function |
Port Address Translation (PAT) Function |
Transparent Bridging (IEEE Standard) Function
- Spanning Tree Bridging Protocol Support
- Remote Bridging Support
- Concurrent Routing and Bridging Support |
Cisco Style Command Line Interface (CLI) |
Network Time Protocol (NTP) Support |
Remote Upgrade for APOS Management using FTP/TFTP |
|
|
|
|
|
|
|
|
