AP2120N NGN VoIP Gateway

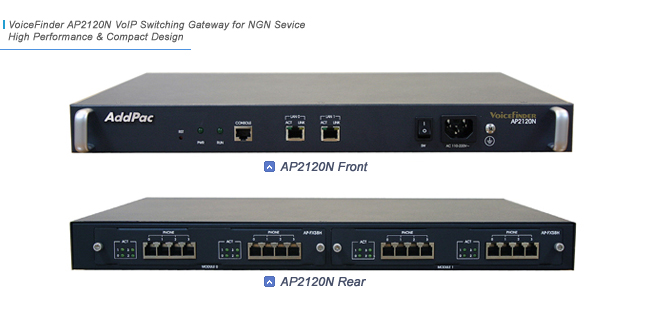

VoiceFinder AP2120N VoIP Switching Gateway for NGN Sevice
High Performance & Compact Design
Product Image


Overview

VoiceFinder AP2120N VoIP Switching Gateway is a next generation IP telephony system offering the merits of existing PSTN switch based on the merits of VoIP telephony. It supports maximum 16 NGN service analog ports for enterprises, public offices and SMB (Small Medium Business). It can be installed at the MDF of apartment complexes offering VoIP telephony service to multi-number of individual customers.

Adopting the merits of PSTN Switch and VoIP Gateway

VoiceFinder AP2120N offers the centralized management feature of VoIP gateway and it effectively deals with complex numbering plan of existing PSTN Switch. It overcomes the distance barrels between the subscriber and the VoIP gateway. So the service providers can easily introduce VoIP telephone service without changing the existing infrastructure. Also, it supports caller ID, various ringing, and surge protection of over 4KV and noise immunity of ADSL/ VDSL. AP2120N is ideal for the service providers trying to adopt competitive IP based telephone system without existing system change.

Deploy "Next generation VoIP telephony solution" on current subscriber environment

Until now, introducing IP network such as broadband Internet should be ahead of introducing VoIP telephone service. So at ordinary houses or small enterprises without network managers, adopting VoIP telephone service is not simple, especially in case of system malfunction. AP2120N is a perfect solution overcoming these shortcomings. It is installed at the telecommunication closet or central offices, so the users can subscribe VoIP service without subscribing broadband Internet service such as ADSL/VDSL, cable modem, etc. Also, it supports number of individual users, so the service providers can reduce the maintenance expenses which significantly reducing the service charge.

Distributed IP Telephony network solution

AP2120N VoIP Switching gateway can easily form telephony service network by connecting number of Switching Gateways. So it is a perfect solution to establish distributed IP telephony network.

Supports various network service such as NAT/PAT

VoiceFinder AP2120N VoIP Switching Gateway offers cutting-edge voice compression algorithm along with AddPac's advanced QoS algorithm realizing ultimate voice quality even on low-speed Internet line as well as high-speed Internet. It supports not only reliable dedicated lines but also fixed and dynamic IIP environment of ADSL and Cable model. Also, it offers Static, RIP v1/2, OSPF v2 routing and various network applications such as NAT/PAT. It realized the best price vs. performance ratio on the high speed Internet access environment.

Overview

Module-slot structure of multi-service gateway
Two(2) Voice and Audio Interface Slots
VoIP Module
¨ç
 AP-FXS8
8-Port FXS Voice Processing Module (8 x RJ11)
¨è
 AP-FXO8
8-Port FXO Voice Processing Module (8 x RJ11)
¨é
 AP-E&M8
8-Port E&M Voice Processing Module (8 x RJ11)
¨ê
 AP-FXS8H
8-Port FXS8H Voice Processing Module (8 x RJ11)
¨ë
 AP-FXO4S4
4-Port FXO & 4-Port FXS Voice Processing Module
(8 x RJ11)
Broadcasting Module
¨ç
 AP-AUDIO2
AP-AUDIO2 Audio Processing Module(4 x 3.5mm Female)
¨è
 AP-AUD1S3
AP-AUD1S3 Audio/Voice Processing Module
(2 x 3.5mm Female/ 3 x RJ11)
¨é
 AP-AUD1S2O1
AP-AUD1S2O1 Audio/Voice Processing Module
(2 x 3.5mm Female/ 3 x RJ11)
¨ê
 AP-MP3
AP-Audio Processing Module(4 x 3.5mm Female)
¨ë
 AP-HQA
High Quality VoIP Audio Broadcasting Interface Module
(2 x 3.5mm Female/ PSB)
Supports long reachable distance between analog phones and VoIP switching gateway
Powerful surge protection (over 4 KV) in case of central exchange and MDF installation
Noise immunity on high-speed network of ADSL/ VDSL with built-in LPF function
Supports existing PSTN numbering plan to support various customer service needs
Centralized management mode, significantly reducing maintenance expenses
Supports caller ID and ringing for various analog phones
Reduced operation expenses with simplified, distributed IP telephone switching network
Supports various bridging/ routing protocols
Supports Triple stack of H.323, SIP and MGCP
Supports standard SNMP for device management
Remote S/W upgrade
Convenient user interface
Superior diagnosis function
Supports various management method
Reliable security function
Efficient IP address usage
Various traffic management
Reliable power supply management
LEDs for easy monitoring

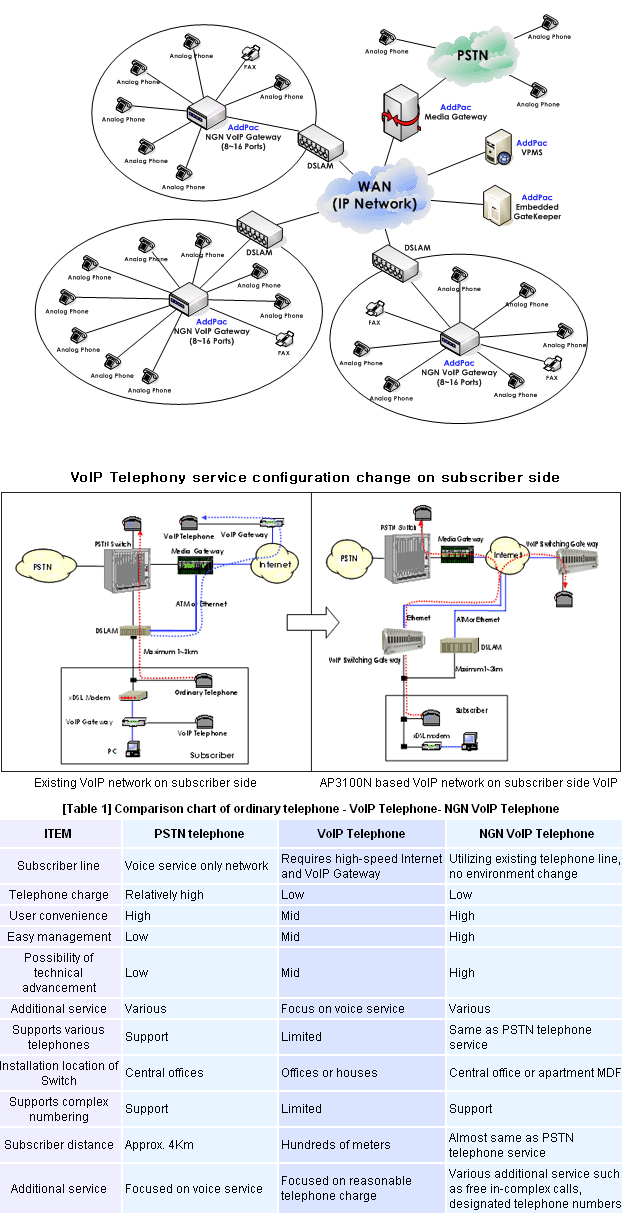

Network Diagram
Hardware Speciification

Microprocessor
 32bit RISC Microprocessor
Memory
 Flash Memory 4Mbyte
SDRAM Memory 64Mbyte
Boot Memory 512Kbyte
LAN Port
 One (1) 10/100Mbps Ethernet Port(RJ-45, LAN1)
One (1) 10/100Mbps Ethernet Port (RJ-45, LAN0)
Console Port
 One (1) RS-232C Interface
Number of Module
 Two(2) Voice Interface Slots
Voice Interface Modules
 8-Port FXS Voice Processing Module (8 x RJ11)
8-Port FXO Voice Processing Module (8 x RJ11)
8-Port E&M Voice Processing Module (8 x RJ11)
8-Port FXSH Voice Processing Module (8 x RJ11)
4-Port FXO & 4-Port FXS Voice Processing Module (8 x RJ11)
4-Port FXS Voice & 4-Port PSTN Backup Interface Module (8 x RJ11)
Audio Broadcasting Modules
 AP-AUDIO2 Audio Processing Module(4 x 3.5mm Female)
AP-AUD1S3 Audio/Voice Processing Module(2 x 3.5mm Female/ 3 x RJ11)
AP-AUD1S2O1 Audio/Voice Processing Module(2 x 3.5mm Female/ 3 x RJ11)
AP- Audio Processing Module(4 x 3.5mm Female)
High Quality VoIP Audio Broadcasting Interface Module(2 x 3.5mm Female/ PSB)
Power
 110~220 VAC, 50/60Hz, 5V 8A


Support Protocol and Service

Routing Protocol
 Static
RIP v1/2
OSPF v2, and IEEE 802.1Q VLAN Routing
 WAN Protocol
 Point-to-Point Protocol over Ethernet (PPPoE for ADSL)
 Voice over IP
Service Function
 ITU-T H.323 v3 VoIP protocol including ITU-T H.235 Security function
SIP protocol compliant with IETF RFC3261 (or RFC2543)
IETF RFC2705bis-02 Standard MGCP 1.0
H.323, SIP, MGCP triple stack support
G.723.1, G.729.A, G.711 Voice Compressions
G.723.1, G.729.A, G.711 Voice Compressions function based on high performance DSP H/W
T.38 G3 FAX Relay
Inter-working with ITU-T H.323 Gateway, Gatekeeper
Enhanced QoS Management Features for Voice Traffics
Security Function
 IP Packet Filtering
Supports IP Access list
User Authentication function (CHAP & PAP)
Enable/ disable specific protocols
Automatic disconnection of Telnet/Console sessions
Multi-level User Account Management
 Network Management Function
 Supports Standard SNMP Agent (MIB v1/2)
Web-based management
Remote management via Console, Rlogin, Telnet
 Additional Features
 Traffic Management function
Bridging function: Spanning Tree Bridging protocol (IEEE)
DHCP Server and Relay function
IP Accounting function
Supports PAT (Port Address Translation)
Supports NAT (Network Address Translation)
Supports CLI (Command Line Interface)
Supports NTP (Network Time Protocol)
System monitoring and debugging function
Back up of Router configuration information (FTP, TFTP)
Remote System Software upgrade
