Overview

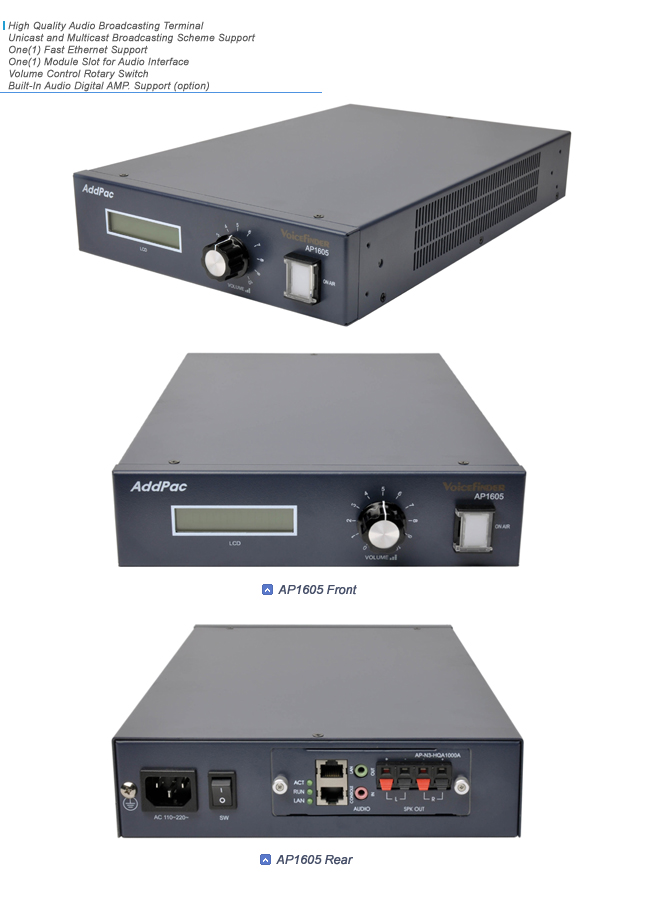

VoiceFinder AP1605 is an IP broadcasting terminal which supports the audio, voice VoIP broadcasting service through internet IP protocol in headquarter and branch. It provides high definition audio quality (up to 16KHz) by using high quality audio compressed codec such as other than existing 8KHz based PSTN. At front, it provides volume adjust rotary switch so that a user may adjust volume in accordance with the needs of user. Also, it provides built-in digital amp broadcasting module with direct connection of external speaker. AP1605 IP audio broadcasting terminal supports an excellent solution for voice and broadcasting task through internet in enterprise environment to maximize the full satisfaction. AP1605 IP broadcasting terminal is designed on module type to support audio broadcasting interface module such as built-in amp. Installation and management are easy for the beginner.

Hardware Type High Performance Audio/Voice Broadcasting Terminal

AddPac IP audio broadcasting solution is composed of AP-ABS5000 HD IP audio broadcasting server, AP-BCR2000 broadcasting router, and AP1605 HD IP audio broadcasting terminal. AP1605 HD audio broadcasting terminal is designed to install 1 module slot to support high quality audio broadcasting. AP1605 audio broadcasting module is designed to accept PSTN voice quality codec such as G.711 for high quality audio codec and Backward Compatibility. AP1605 IP audio broadcasting terminal combines with AddPac DSP hardware and high performance processor for real time decoding/play of HD audio signal.

Real Time HD Live Audio

AddPac HD IP audio broadcasting terminal opens a whole new world of real time audio broadcasting system based on high performance and stability. Compressed audio signal such as support stable high quality audio in data convergence network through QoS. It is designed to decode the encoded data in an appropriate bit rate from broadcasting server in accordance with network status.

Support Unicasting/Multicasting Protocol

AP1605 IP audio broadcasting terminal supports both Multiple Point-to-Point method unicasting IP broadcasting and IGMP based Multicasting Routing function.

High Performance Network CPU Interface

AP1605 IP audio broadcasting terminal is designed to support high quality/high performance service. It supports status check LED to display the device status as well as Blue Lamp to check On-Air broadcasting status at a glance. It also supports one 10/100Mbps fast Ethernet port and RS232C console interface for various network services.

Audio Broadcasting Feature and Supplementary Service

AddPac IP broadcasting series has been fully recognized in terms of its performance and stability throughout the world. With our accumulated experience in enterprise market and service provider market, AP1605 IP broadcasting terminal will satisfy the needs of customer along with AP-ABS5000 multichannel IP audio broadcasting service. It provides stable service by using QoS algorithm feature.

Overview

Overall Features
	High Quality Audi Broadcasting Module with High-End DSP
	Support , G.711, G.726 and High Quality Audio Codec
	High Performance Network Modular Structure
	IP Audio Broadcasting Modules ① AP-N3-HQA1000 1-Port Audio In/Out Processing Module ② AP-N3-HQA1000A Built-in AMP. 1-Port Audio In/Out Processing Module
	1 Port Audio Input/Output IP Audio Broadcasting System
	Support Multiple Point-to-Point Method IP Audio Broadcasting Feature
	Support IP Multicasting Routing Function and IEEE802.1Q VLAN
	High-performance IP-Routing Capability with Reliability
	Static and IEEE 802.1Q VLAN Routing Protocols including VRRP
	Traffic Queuing, and SNMP MIB v2 for Network Management Features
	Standard & Extended Access List for Security Functions
	Support Remote Software Upgrade with FTP and TFTP
	Support Debugging Environment for Network Administrator
	Support User Friendly CLI Setup Environment

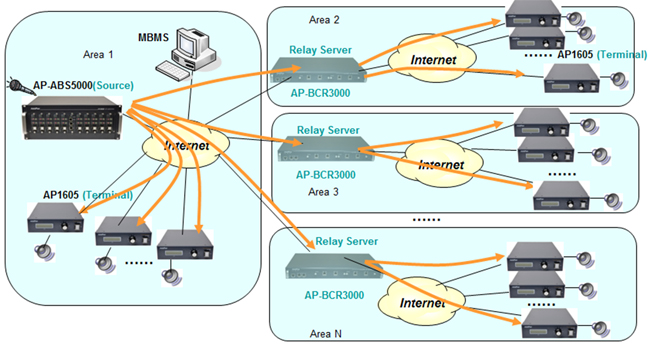

Network Diagram

Hardware Speciification Microprocessor High-End RISC Microprocessor Memory Flash Memory 512Mbyte NAND SDRAM Memory 256Mbyte High Speed DDR2 Audio Interface Module AP-N3-HQA1000 1-Port Audio In/Out Audio Processing Module Audio IN : MIC, Line In Audio OUT : HP(Head Phone), Line Out LAN Port : One(1) 10/100Mbps Fast Ethernet Console Port : One(1) RS-232C Interface AP-N3-HQA1000A 1-Port Audio In/Out Audio Processing Module Audio IN : Line In Audio OUT : Line Out AMP. Speaker Out (Built-In Amplifier) 4ohm Speaker : 50Watt 8ohm Speaker : 30Watt LAN Port : One(1) 10/100Mbps Fast Ethernet Console Port : One(1) RS-232C Interface Power Requirement Input : VAC 110~220V, 50/60Hz DC output : 24V/5A Operating Temperature 0°C to + 50°C (32° to 122°F) Storage Temperature -40°C to + 85°C (-40° to 176°F) Relative Humidity 5% to 95% (Non-condensing) Dimensions(H x W x D) 55mm x 223mm x 342mm Weight(kg) 2.76Kg

Support Protocol and Service

Routing Protocol	Static
	IGMP Protocol, Multicasting Packet Generation
IP Audio Broadcasting Feature
	Support Multicasting Method VoIP Audio Broadcasting Terminal Feature
	Support Multiple Point-to-Point Method VoIP Audio Broadcasting Terminal Feature
	Support Enhanced QoS Management Features for Voice/Audio Traffic
Security Feature	Support IP Access List
	IP Packet Filtering Feature
	Administrator Authentication Feature (CHAP and PAP)
	Auto Disconnection Feature Regarding Telnet/Console Session
	Multi Level User Account Management Feature
	Support Standard SNMP Agent (Support MIB v1/2)
Network Managements	Web Based Device Management Feature
	Remote Management with Console, Rlogin, Telnet
	Support Traffic Management Feature
Supplementary Features	Support Bridging Feature: Support Spanning Tree Bridging Protocol (IEEE)
	DHCP Server and Relay Feature
	IP Accounting Feature
	Support PAT(Port Address Translation)
	Support NAT(Network Address Translation)
	Support CLI(Command Line Interface)
	Support NTP(Network Time Protocol)
Support Various Features	Support System Surveillance and Debugging Feature
	Support Router Configuration Information Backup (FTP, TFTP)
	System Software Remote Upgrade
