AP-VC5000 HD video conference equipment delivers a new and powerful IP based HD video communication by simply connecting HDTV, external HD video camera and micro phone. Designed on firmware upgradeable, high-performance Host Processor + DSP, AP-VC5000 is equipped with the latest audio/video codec, A/V interfaces realizing complete Internet video telephony, video conferencing, VoD (video on demanding) applications and AV broadcasting system in one platform. This device provides the dual external A/V interface and built-in 4 parties HD video MCU for supporting various video communication applications.

Powerful Video Communication Solution for Next Generation Broadband Network
AP-VC5000 HD video conference equipment offers improved effectiveness with its cutting-edge video processing technology, IPv4/IPv6 based networking protocol technology and VoIP signaling technology. By connecting ordinary HDTV, HD video conference cameras, High Quality MIC and Speaker System to AP-VC5000, this device make the ultimate and easy solution for traffic control, audio/video broadcasting and various customer specific applications.

Table 1. Various applications of AP-VC5000

Dual Video Channel for Various HD Video Applications

AP-VC5000 HD video conference equipment supports the dual video input/output channel for effective HD video conferencing. The first video channel of AP-VC5000 is equipped with RCA, S-video, D-Sub RGB, and component (Y, Pb, Pr) video output interface for connecting HDTV, and with RCA, S-video, Component, HD-SDI interface, D-Sub RGB Interface for external video input such as HD video camera. The second video channel of AP-VC5000 is equipped with RCA, S-video, D-Sub RGB, DVI, and component (Y, Pb, Pr) video output interface for connecting HDTV, and with RCA, S-video, Component, D-Sub RGB Interface for external video input such as HD video camera.

Supporting Diverse Video Codec and Protocol

AP-VC5000 HD video conference equipment supports 720P HD (1280 x 720) live video resolution at 1~4Mbps bandwidth which is considered promising for the high quality video application using H.264 next generation video codec. AP-VC5000 provides a full suit of functionality for rich HD video conferencing experience including a wide range coverage from voice band AAC, G.722, G.711, G.726, G.729, G.723.1, etc audio codec to H.263, MPEG-4, H.264 video codec. Also AP-VC5000 provides the state-of-the-art optional HD video MCU features. AP-VC5000 ensures the best performance of the MCU that supports a 4-party HD video conference. This product can efficiently control or manage the features (e.g. layout change) of video MCU by smart multimedia manager. Also, AP-VC5000 support various video conference type like as Meet-Me(Dial-in), Ad-Hoc(On-Demand) and Scheduled Video Conference mode. AP-VC5000 supports the SIP, H.323 protocols for VoIP signaling. For SIP based VoIP signaling, AP-VC5000 supports the internal SIP call manager features. For H.323 VoIP signaling protocols, external AddPac Technology’s enterprise H.323 gatekeeper is recommended.

Adapt to the Future Circumstances : Firmware upgradeable technology

Designed on the foundation of parallel DSP architecture + High end Processor for real-time processing, AP-VC5000 is capable of adopting new capabilities and improvement by downloading firmware from website or with its auto-upgrade option as the customers' needs grow. Using this firmware upgrade S/W features and solution, new coming video/audio codecs, VoIP signaling protocols and network protocols will be supported

USB Interface

The rear panel of AP-VC5000 has the USB master mode interface. AP-VC5000 supports standard USB flash memory, a USB hard disk, a USB keyboard, and a USB mouse. Several USB devices can be connected by using a USB hub. A separate power supply device should be used for a USB device that needs much power consumption since limited power is supplied to a USB device. If USB memory is used, AP-VC5000 enables a file browser, and decodes JPEG, PMA (video stream format of AddPac), and XVID* (MPEG4, MP3) files.

HD Conferencing Solution with Outstanding Network Service Capability

AP-VC5000 is integrated, feature-rich network equipment delivering routing, NAT/PAT, DHCP Server/Relay, VRRP and QoS. In today's mixed network of xDSL, Cable, FTTH, Metro Ethernet, Metro ATM, Leased line and dynamic IP environment, not only the ample network service features, but also high-end QoS(Quality of Service) and security features are requested. Based on two(2) 10/100/1000Mbps Gigabit Ethernet ports, AP-VC5000 offers integrated network and security service of LAN-to-LAN routing, bridge and NAT/PAT.

AddPac Technology's VoIP gateways, Video Phone, IP-PBX, Broadcasting System, Network DVR, VoD system have been highly appraised with their advanced performance and reliability by worldwide customers. With its years of experience and know-who would make AP-VC5000 as the ultimate solution for next-generation HD video communication.

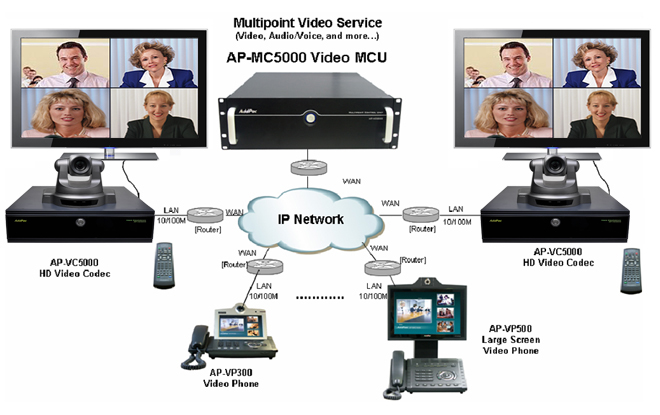

Network Diagram

Overall Features
	Supports HD Point-to-Point Video Conference Features
	Point-to-Multipoint Internal Video MCU Feature
	Dual monitor (Independent Display) and dual monitor emulation
	Network Interface : 10/100/1000Mbps Gigabit Ethernet
	Dual Video Input/Output Channel (Component, S-Video, RCA, D-Sub, etc)
	High performance programmable Host Processor + DSP
Video Features
	Supported Codec: H.263, MPEG-4, JPEG, and H.264
	Video MCU(H.263, MPEG4, H.264), SIP/H.323 for up to four party
	Meet-Me, Add-Hoc, Dial-Out Video Conferencing Signaling Support
	Processes 720P HD video by 30 frames per second at 1~4Mbps (H.264)
	Supports rate control to ensure the best quality and frame rate at a limited bandwidth.
	High-end error resilience is applied to troubleshoot various packet failures on a network.
Audio Features
	Supported Codec: Voice Band – G.722, G.711, G.723, G.726, and G.729 Wide Band Stereo, AAC
Signaling Features
	IETF SIP , H.323 Signaling Protocol
Network Services
	High-performance IP-Routing Capability with Reliability
	Static, IEEE 802.1Q VLAN Routing Protocols including VRRP
	Traffic Queuing, and SNMP MIB v2 for Network Management Features
	Standard & Extended Access List for Security Functions
	Essential Scalability Features such as DHCP Server & Relay, NAT/PAT,
	IEEE Transparent Bridging, IP Accounting, and Debugging/Diagnostics, etc.
	DNSProxy, UPnP, MAC Address Filter Service
