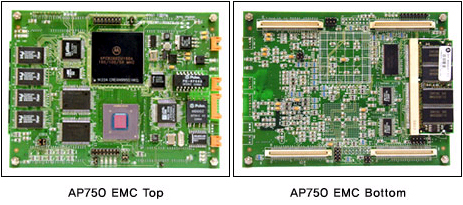

The AP750 Embedded Mezzanine Card(EMC) is a high-performance
telecom CPU board for the telecommunication applications such IMT-2000, IP or
ATM based system, general purpose high-end telecommunication equipments. The
AP750 EMC provide companion bus mode operation using MPC750 G3 high-end RISC
computing power with MPC8260 Communication Processor Module (CPM).
High-performance OEM CPU Board
Solution for Embedded Telecom Applications
MPC750 G3 Companion Mode
Operation Support
1Mbyte High-speed L2 Cache
Memory for MPC750 Processor
Up to 200MHz Motorola MPC8260
PowerQUICC II Processor
Up to 256Mbyte SDRAM Module
8Mbyte SDRAM for Local Bus
Up to 16Mbyte Flash Memory
32Kbyte Parallel EEPROM
One 10/100BaseTx Ethernet
One 25Mbps ATM Interface
Dual RS-232C Serial Interface
HW Watch-dog Timer Support
400Pin Edges Pin for Bus
extension
ATM Device Driver Support
VxWorks/Tornado 2.0 RTOS BSP
Embedded LinuxOS &
Boot-loader
Other Commercial RTOS BSP
Support
Various Telecom Protocol
Support
The AP750 EMC bus extension
connectors are designed to be compatible connectors with Motorola
PowerPC based AP860 /AP8260/AP7400 Embedded Mezzanine Card(EMC) s eries.
