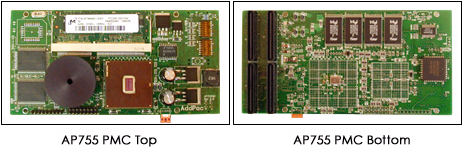

AP755 PCI Mezzanine Card is an outstanding high performance and cost effective CPU board which consists of Motorola high-end processor MPC75x CPU and high performance PCI controller XPC107. It supports maximum 400MHz CPU clock mode, combining diverse I/O processing functions and powerful 64bit main operation processing function of maximum 733MIPS MPC75x G3 processor.
AP75x embedded CPU board solution, adopting a structured design that various communication applications such as ATM, Fast Ethernet and HLDC can be carried on PCI bus, enhances computing power for high speed communication processing with 1Mbyte L2 Cache-Memory supporting MPC75x in high speed. The CPU board has 128~256Mbyte SDRAM, 8Mbyte Flash memory fixed.
Its ATM SAR device drive from CONEXANT co. Ltd, can be applied to ATM application development as well as diverse applications based on real-time OS such as Linux or AddPac APOS.
Prepared for when real-time OS is not available, it provides internal program development environment through its bug-monitoring tool. In addition, its BDM debugging interface makes firmware development environment easily implemented through common BDM debugging tool.
The CPU board provides prominent competitive power to develop IMT-2000 system, next generation VoIP system, wired-wireless integrated system.
