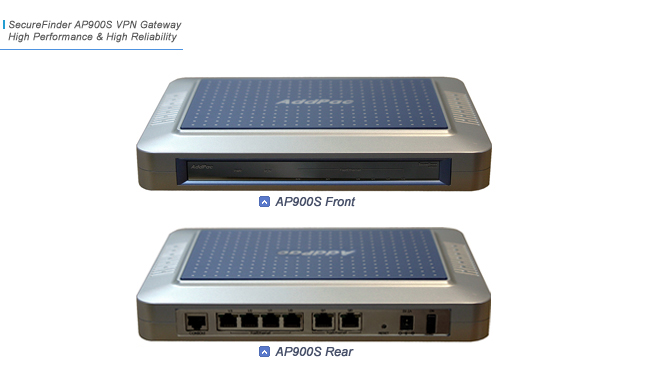

SecureFinder AP900S is an IPsec based embedded VPN Gateway. Remote offices should comply with the security policy of the headquarters when accessing to the key applications such as Groupware, CRM, ERP and etc. AP900S is a perfect solution for the businesses looking for compact but powerful VPN solution.
Next generation VPN gateway with ample routing features
SecureFinder AP900S is a next generation VPN gateway accommodates the need for high-performance, multi-feature VPN connectivity for small-scales businesses. It delivers flexible routing solutions such as PPPoE for xDSL/Cable Modem environment, along with Static, and IEEE 802.1Q VLAN Routing, RIP v1/v2, OSPF v2 and BGP v4 to meet the various network requirements of SOHO and residential VPN markets.
High performance, H/W based encryption accelerator structure
AP900S's built-in H/W based security accelerator realizes maximized system performance by significantly reducing network and system load. Especially AddPac's VPN exclusive Operating System, APOS¢â, offers secure, reliable and QoS ensured transport of various multimedia applications along with flexible conventional network deployment. AP900S also supports popular encryption algorithms of DES, 3DES, AES to accommodate various security needs of workgroups.
Flexible network adaptation with built-in secure-network configurable 4-port HUB
Remote offices should comply with the security policy of the headquarters when accessing to the key applications such as corporate Groupware, CRM and ERP to securely protect enterprise resources. However, small-sized offices without the help of network administrators frequently face security threats. AP900S offers built-in 4-port 10/100Mbps HUB and its automatic secure-network configuration feature realizes rapid and reliable network deployment without asking additional switches or HUB.
Timely, reliable delivery of latency-sensitive traffic
Traffic prioritization of multimedia and VoIP application greatly affects the choice of VPN equipment. SecureFinder AP900S complies with standard QoS (Quality of Service) and offers AddPac's enhanced QoS service resulting increased transmission reliability and better response time of various streaming data running across the VPNs.

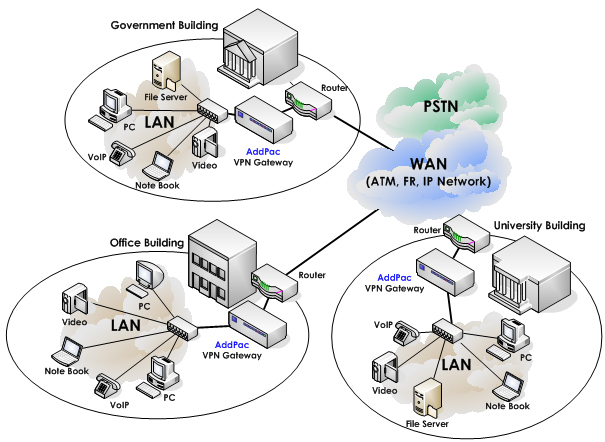

Network Diagram
Embedded VPN System
Hardware based Security Accelerator
DMZ for Secure Web & E-mail Access
Built-in 4-Port Fast Ethernet HUB
Authentication Algorithm : MD5, SHA-1, HAS-160
Encryptions Algorithm : DES, 3DES, AES, etc.
SSL/SSH-secured communication feature
Key Management: IKE Standard
CA Authentication : ID/Password, LDAP, X.509
Flexible Backup Feature using VRRP
QoS Service for Multimedia Application such as VoIP
Real time monitoring feature
Supports various routing features
Various remote management features such as remote upgrade
Microprocessor
64bit RISC Microprocessor
Memory
Flash Memory
8Mbyte
DRAM Memory
64/128Mbyte
Boot Memory
512Kbyte
Network Interface
2-Port 10/100Mbps Fast Ethernet Interface (RJ-45 interface)
-Support Load Balancing
-DMZ for Secure Web & E-mail Access
-Creates a Public and Private Network Simultaneously
4-Port 10/100Mbps Fast Ethernet Interface for LAN
-Supports Auto Secure Service Configuration
Console Interface
1-Port RS-232C Console Interface (RJ-45)
Power Requirement
External Power, 110~220 VAC, 50/60Hz, 20Watt
Operating Temperature
0¡ÆC ~ 50¡ÆC (32¡Æ ~ 122¡ÆF)
Storage Temperature
-40¡ÆC ~ +85¡ÆC (-40¡Æ ~ +185¡ÆF)
Relative Humidity
5% ~ 95%
Dimension
43 x 265 x 165 (mm , H x W x D)
Network & IP Routing
Protocols
Static and Default Routing
RIP v1/v2, OSPF v2, BGP v4
IEEE 802.1Q VLAN Routing
WAN Protocols
Point-to-Point over Ethernet Protocol (PPPoE) for ADSL
VPN Function
Authentication Algorithm : MD5, SHA-1, HAS-160
Key Management: IKE Standard
CA Authentication : ID/Password, LDAP, X.509
IP Encapsulating Security Payload (ESP)
Authentication : PAP, CHAP, MS-CHAP*, RADIUS*
Tunneling Protocol : PPTP, L2TP, IPSec
IKE Encryption : DES, 3DES, AES, blowfish, cast
IKE hash : MD5, SHA1
IKE Authentication : Preshared-key, RSA-sig*
IKE Key Exchange : DH group 1(768), DH group 2(1024), DH
group 5(1536)
