Title : VoiceFinder AP-3G1004B 4 Port 3G FXS Gateway, 4 Port 3G ATA(Analog Terminal Adaptor)





VoiceFinder AP-3G1004B four(4) channel 3G Analog/VoIP Gateway provides high-performance Analog FXS or IP to 3G gateway solution for SOHO, and small enterprise. This product uses the state-of-art technology voice compressed algorithm and unique QoS algorithm of AddPac to maintain the maximum voice quality under fast internet line and slow internet line as well. This product is designed based on high performance RISC CPU + DSP structure; supports upgraded speed, the best quality product, offers various user-friendly functions, manufactured at low cost and this product gives high performance for its price.
AddPac AP-3G1004B is a device that can support both 3G gateway service (FXS?3G or Internet?3G) and VoIP gateway service (FXS?Internet) simultaneously. It also supports SIP, H.323 Multiple VoIP signaling protocol, various voice codec support(G.711, G.726, G.729, G723.1), four(4) channel 3G interface (antenna, USIM Card), one(1) fast ethernet port, four(4) FXS interface ports and state-of-art technologies and services.

VoiceFinder AP-3G1004B 3G Analog/VoIP Gateway supports single 10/100 Base-T fast ethernet Interface port and provides stabilized leased line environment, ADSL environment, cable modem environment, fixed IP Address, supports all flow IP environment so that it can be selected in accordance with user environments. It also provides routing function, and internet application function, and offers both VoIP function and IP router function in one platform. So it supports the 3G Analog/VoIP Gateway solution for SOHO in economical and effective way under fast internet access environment.

Designed on programmable high performance RISC Integrated DSP Technology, AP-3G1004B is capable of adopting new capabilities and improvement by downloading firmware from website or with its auto-upgrade option as the customers' needs grow. Moreover, operators can download the latest protocol or service improvements as well as update firmware by checking the version and activating the auto-upgrade via AP-SNMS (Smart Network Management System) of AddPac Technologies.

AddPac technology is not just a vendor of 3G Gateway Box for the customer satisfaction, but it provides various products for appropriate network environment for VoIP, Media Gateway, audio/video terminals, audio/video MCU, IP audio/video broadcast, IP telephony solution, network VMS solution, audio/video recording solutions, and traffic controller QoS device solutions. In the future, All IP based multimedia telephony environment, various audio/video resources should be shared on an IP Network; thus, the integration of solutions for each area and entire solutions are considered as top priority. AddPac IP telephony solution is designed to consider the integrated multimedia solution so that it can satisfy the various needs of customer. AddPac’s various mobile VoIP Gateway series and multimedia network devices have been fully recognized in terms of its performances and stability throughout the world. AP-3G1004B, with our accumulated experiences and know-how in the enterprise and service provider markets, will provide full satisfactions for customers who ask for a next-generation 3G Analog/VoIP Gateway.

AP-3G1004

4-Port FXS Voice Interface (Model B)
4-Port FXO Voice Interface (Model C)
4-Port 3G Module
4-Port Antenna Interface for 3G Service
4-Port USIM Card Interface for 3G/GSM Service
4-Port 10/100Mbps Ethernet Interface
1-Port RS232C Interface for Command Line

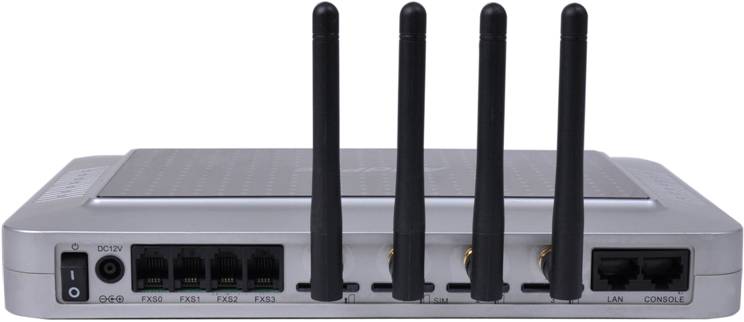

Interface

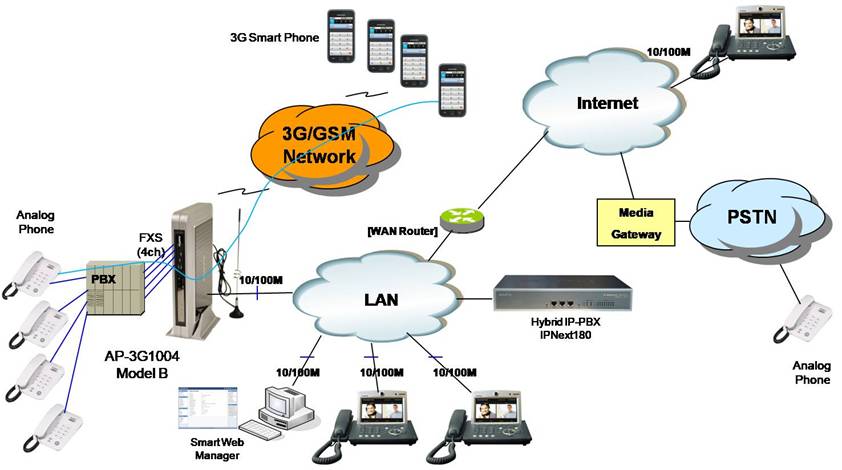

Network Diagram



Web Page Link -> AP-3G1004B Web Page.
