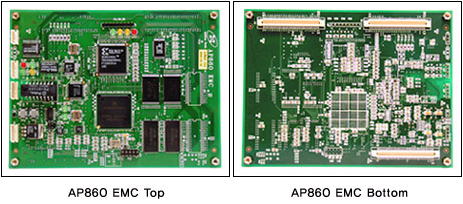

The AP860 Embedded Mezzanine Card(EMC) is a embedded CPU engine
for communication applications requiring HDLC, Ethernet, WAN/ATM connectivity.
Featuring powerful PowerPC MPC860SAR PowerQUICC processor, The AP860 EMC
delivers 32bit RISC computing power for the real-time embedded application such
as IMT-2000, ATM based system, general purpose telecommunication embedded
application.
Cost Effective OEM CPU Board
Solution for Embedded Telecom Applications
50MHz Motorola MPC860SAR
PowerQUICC Processor
Up to 64Mbyte SDRAM
Up to 8Mbyte Flash Memory
32Kbyte Parallel EEPROM
One 10BaseT Ethernet Interface
One 25Mbps ATM Interface
Dual RS-232C Serial Interface
HW Watch-dog Timer Support
300Pin Edge Pins for Bus
extension
ATM Device Driver Support
VxWorks/Tornado 2.0 RTOS BSP
Embedded LinuxOS &
Boot-loader
Other Commercial Real-time OS
BSP Support
Various Telecom Protocol
Support
The AP860 EMC bus extension
connectors are designed to be compatible with Motorola PowerPC based
AP8260/AP750 /AP7400 Embedded Mezzanine Card(EMC) series.
